Male Bspp Tee 9080-16-16-16

Specifications

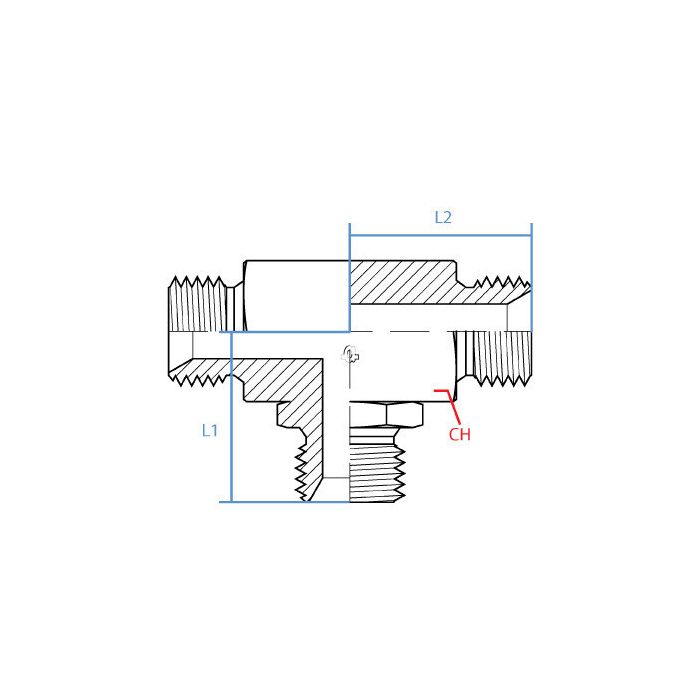

CH Width 36mm	L1 Length 43mm	L2 Length 43mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Side 3 Callout G 1 - 11	Side 3 Gender M	Side 3 Size 1"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9080-16-16-16	Product Weight 1.25 lbs

Product Questions & Answers 2

Product Questions & Answers

got three female bspP ports i need to tie together, is this tee all the same thread on every side?

Question by: Carl C on Mar 13, 2026, 9:36 PM

All three ports are male BSPP with the same thread callout, G 1-11, and they are all 1 inch. It is an equal-bore tee, so the run and the branch are the same size and thread.

Answer by: Customer Support on Mar 15, 2026, 11:07 AM

All three ports on this thing are male BSPP -- does that mean I need female BSPP fittings or ports on whatever I'm connecting it to?

Question by: Brett M on Sep 18, 2025, 9:25 AM

Correct. Every port on this tee carries a G 1-11 male thread, so each connection point needs a corresponding female BSPP port or a female-threaded adapter to mate with it. All three sides are identical in that regard, so there's no mixing of thread types or genders anywhere on the fitting. If your existing circuit runs female BSPP throughout, this drops right in without any additional conversion hardware.

Answer by: Customer Support on Sep 19, 2025, 5:05 PM
