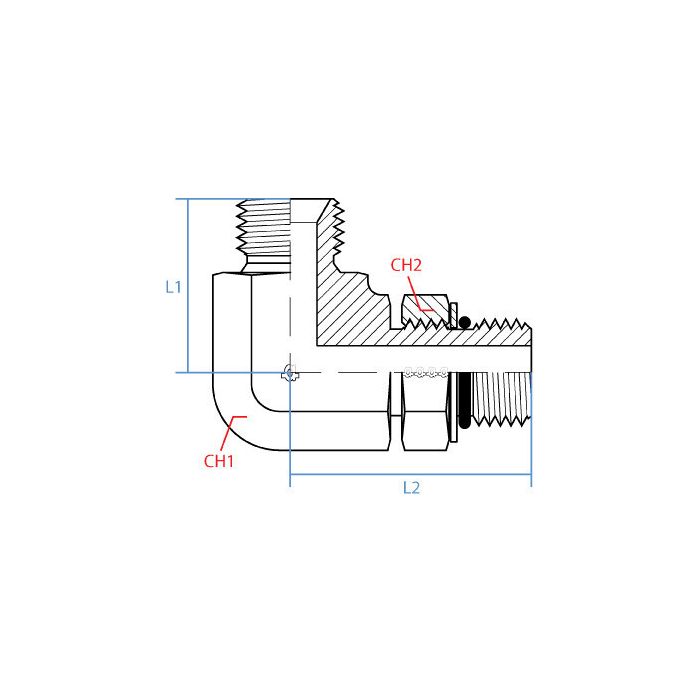

90* Mbspp X Male Orb Adj.

CH1 Width 27mm	CH2 Width 32mm	L1 Length 40mm	L2 Length 48mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9077-12-12	Product Weight 0.60 lbs

Product Questions & Answers

trying to swap an elbow out, does this one go from G 3/4-14 BSPP male to a 1-1/16-12 UN male ORB?

Question by: Dustin W on Oct 7, 2025, 8:44 PM

Yes. One end is a G 3/4 - 14 BSPP male connection, and the other end is a 1-1/16 - 12 UN Male O-Ring Boss (ORB-SAE), in a 90° elbow configuration.

Answer by: Customer Support on Oct 9, 2025, 8:19 AM
