90* Mbspp X Male Orb Adj.

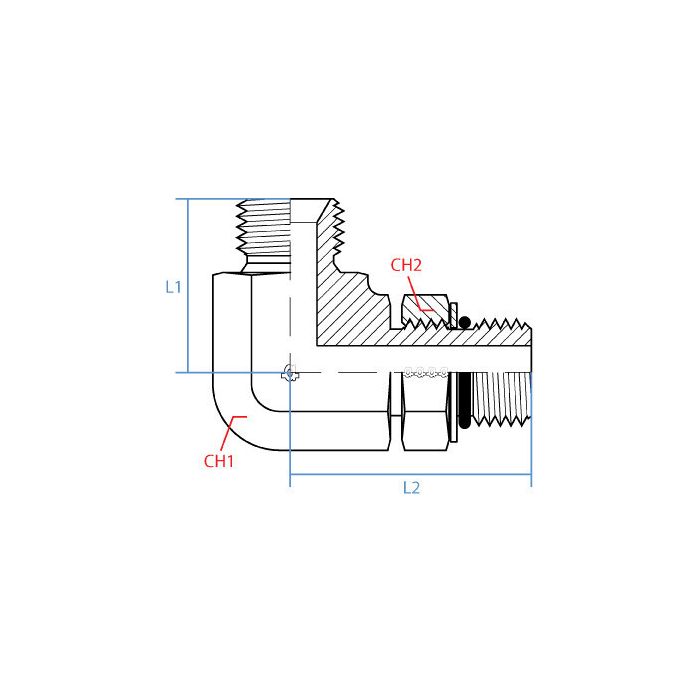

CH1 Width 22mm	CH2 Width 27mm	L1 Length 35mm	L2 Length 41mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 7/8 - 14 UNF	Side 2 Gender M	Side 2 Size 5/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9077-08-10	Product Weight 0.40 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line coming off a BSPP port and need to tie into an SAE ORB port at a right angle, this fitting do that?

Question by: Larry S on Oct 1, 2025, 4:03 PM

That's exactly what it's built for. One end is a G 1/2 male BSPP thread (G 1/2 - 14) and the other is a 5/8" male ORB adjustable port with a 7/8 - 14 UNF thread. The 90-degree elbow handles the right-angle transition, so you're not fighting the line to make the turn. Steel construction throughout.

Answer by: Customer Support on Oct 3, 2025, 10:21 AM

trying to hook a G 1/2 BSPP port to an ORB line, is this the elbow that does it?

Question by: Jerry E on Sep 22, 2025, 8:53 PM

For tying those two thread standards together, it goes from a G 1/2 - 14 male BSPP on one side to a 7/8 - 14 UNF male SAE ORB on the other, in a 90 degree elbow.

Answer by: Customer Support on Sep 24, 2025, 6:13 AM
