90* Mbspp X Male Orb Adj.

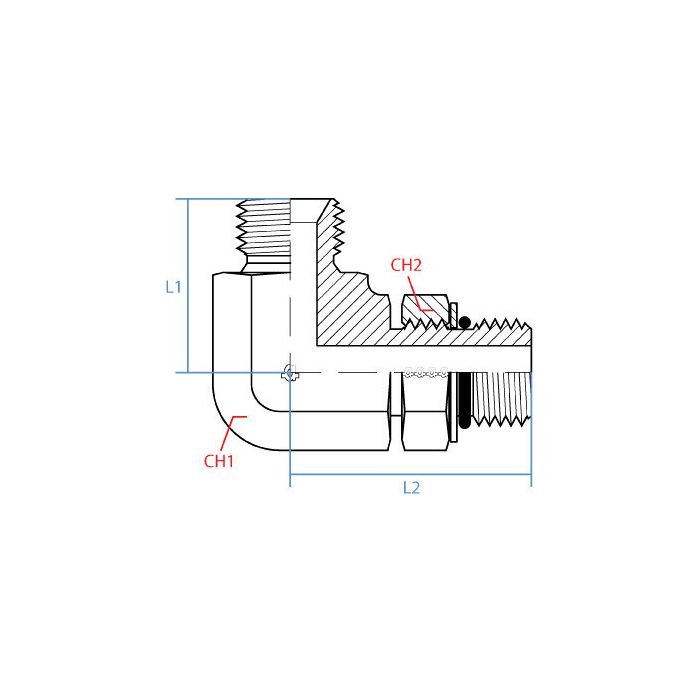

CH1 Width 22mm	CH2 Width 22mm	L1 Length 35mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9077-08-08	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

I need a ninety degree elbow for a hydraulic setup. Will this thing do the trick?

Question by: Ray E on Jul 13, 2025, 7:46 AM

This 90° elbow Adaptall fitting should work great. It's made of steel and has a 1/2" male BSPP end and a 1/2" male ORB-SAE adjustable end.

Answer by: Customer Support on Jul 15, 2025, 7:54 AM

trying to match up an elbow i pulled off, is this the one with G 1/2 - 14 on one side and 3/4 - 16 UNF on the other?

Question by: Danny R on Sep 29, 2025, 10:18 AM

For fit confirmation, the thread callouts on this adapter are G 1/2 - 14 on Side 1 (male BSPP, 1/2 inch) and 3/4 - 16 UNF on Side 2 (male ORB-SAE, 1/2 inch). It is a 90 degree elbow and the ORB end is adjustable.

Answer by: Customer Support on Oct 1, 2025, 6:51 AM
