90* Mbspp X Male Orb Adj. 9077-06-08

Specifications

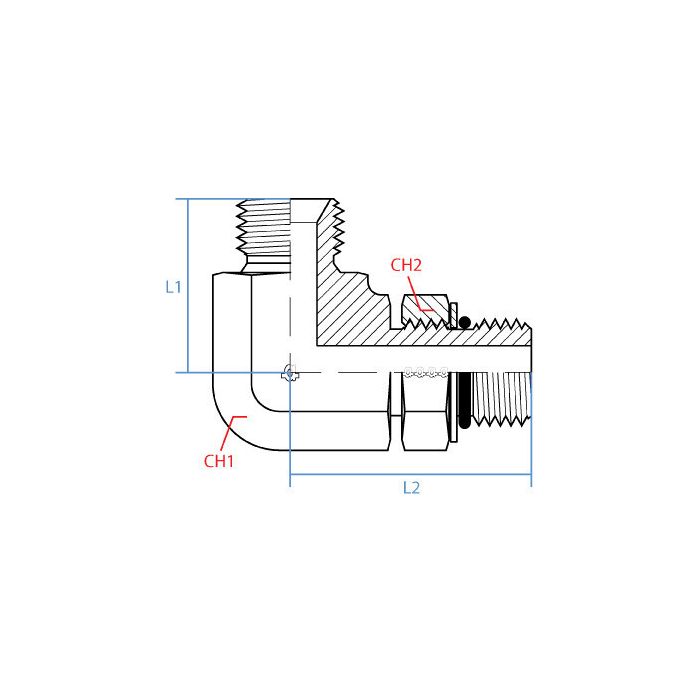

CH1 Width 19mm	CH2 Width 22mm	L1 Length 31mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9077-06-08	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up if I'm using it in a hydraulic system that runs pretty hot?

Question by: Curt H on Nov 4, 2025, 6:36 AM

Crafted from durable steel, this 90° elbow fitting is made to handle demanding industrial environments, including those with high temperatures.

Answer by: Customer Support on Nov 6, 2025, 6:40 AM

Got a hydraulic line coming off a pump that's running a 1/2" ORB port and I need to route it at a 90 with a BSPP connection on the other end, this the right fitting for that?

Question by: Rusty C on Mar 26, 2026, 1:25 PM

For a 3/4-16 UNF ORB-SAE male on one side and a G 3/8-19 BSPP male on the other with a 90 degree turn between them, yeah, that's exactly what this fitting does. The ORB side is sized for a 1/2" port and the BSPP side is 3/8". Both sides are male, so make sure your mating connections are female on each end. The adjustable feature on the ORB side lets you clock the elbow to whatever angle works best before you lock it down, which saves a lot of headache when you're working in a tight spot.

Answer by: Customer Support on Mar 28, 2026, 8:35 AM
