90* Mbspp X Male Orb Adj. 9077-06-06

Specifications

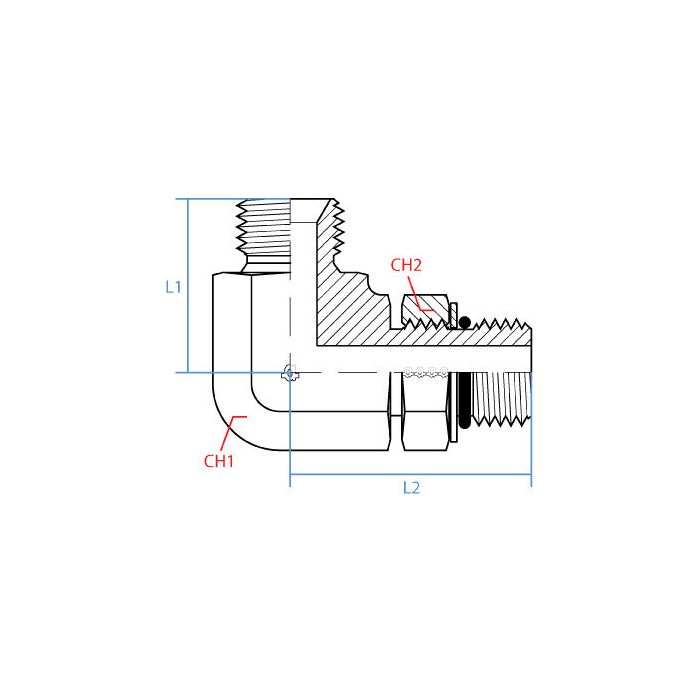

CH1 Width 19mm	CH2 Width 19mm	L1 Length 31mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9077-06-06	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line coming off a BSPP port and I need to tie into an SAE ORB adjustable port at a right angle. this the fitting that handles that?

Question by: Hugh Y on Dec 6, 2025, 9:24 AM

That's what this one's built for. One end is a G 3/8-19 male BSPP thread and the other is a 9/16-18 UNF male ORB adjustable. The 90-degree elbow routes the line at a right angle between those two thread standards, and both sides are 3/8" nominal, so you're not stepping up or down in size. The adjustable ORB end lets you rotate it during installation to get the line pointed where you need it before locking it down.

Answer by: Customer Support on Dec 8, 2025, 7:54 AM

Will this fitting work to connect a BSPP thread to an SAE ORB port at a 90-degree angle?

Question by: Dwight M on Mar 25, 2026, 7:40 AM

Yes, that's exactly what this Adaptall fitting is designed for. It connects a G 3/8-19 male BSPP thread to a 9/16-18 UNF male O-ring Boss (SAE ORB) adjustable port, with a 90-degree elbow.

Answer by: Customer Support on Mar 26, 2026, 5:03 PM

got a port that’s G 3/8-19 BSPP and i need to swing over to an ORB line, is this the right elbow for that?

Question by: Troy L on Oct 27, 2025, 6:37 AM

For that mix of thread standards, it’s a match. One end is a G 3/8-19 male BSPP and the other end is a 9/16-18 UNF male SAE O-ring Boss adjustable end, in a 90 degree elbow, with both sides called out as 3/8 inch nominal size.

Answer by: Customer Support on Oct 29, 2025, 6:25 AM
