90* Female Bspp Swivel Elbow

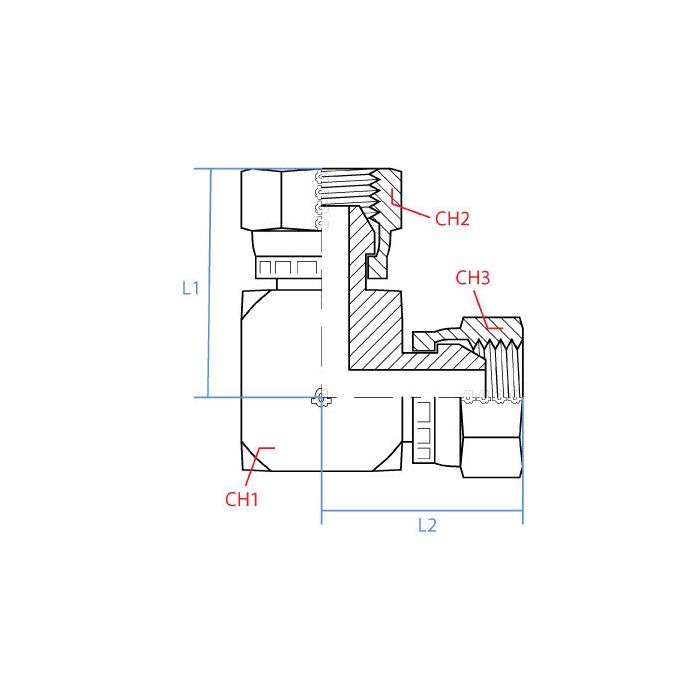

CH1 Width 28.5mm	CH2 Width 32mm	L1 Length 34mm	L2 Length 36mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/4 - 14	Side 1 Gender F	Side 1 Size 3/4"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9075-12-12	Product Weight 0.65 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow on my rig, are both ends on this one the same thread and size?

Question by: Stan P on Jan 27, 2026, 9:00 PM

Both sides are female BSPP with the same callout, G 3/4 - 14, so it is a 3/4 inch BSPP female swivel elbow on each end.

Answer by: Customer Support on Jan 29, 2026, 6:54 AM

Will this elbow fitting hold up okay in an industrial hydraulic setup?

Question by: Kent B on Jun 9, 2025, 8:27 PM

Constructed from durable steel, this 90° elbow fitting is well-suited for demanding industrial applications, ensuring a secure and leak-free connection.

Answer by: Customer Support on Jun 11, 2025, 6:28 AM

both sides on this fitting are 3/4 BSPP female right? just want to make sure before I order

Question by: Tony B on Feb 7, 2026, 5:59 PM

Correct on both counts. Each side carries a G 3/4-14 BSPP female thread, so you're working with matching 3/4" female connections at both ends. That makes it a straight same-size elbow rather than a reducer, which is worth confirming before you commit to a purchase.

Answer by: Customer Support on Feb 9, 2026, 7:53 AM
