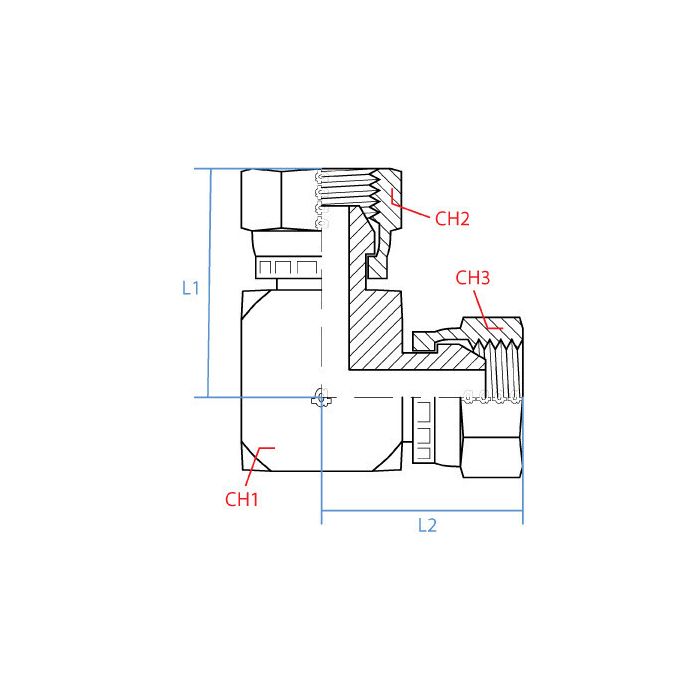

90* Female Bspp Swivel Elbow

CH1 Width 22mm	CH2 Width 27mm	L1 Length 32mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender F	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9075-08-08	Product Weight 0.45 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of material is this elbow made outta?

Question by: Denise P on Feb 22, 2026, 6:48 AM

This elbow is constructed from steel, so it should hold up well in hydraulic applications.

Answer by: Customer Support on Feb 24, 2026, 6:10 AM

trying to swap out an elbow on my hydraulic line, is this one 1/2" female BSPP on both ends?

Question by: Connie B on Jan 9, 2026, 7:27 AM

Both sides are G 1/2 - 14 female BSPP, so it’s a 1/2 inch female BSPP connection on each end.

Answer by: Customer Support on Jan 11, 2026, 6:44 AM

Both ports on this thing are 1/2" female BSPP, so there's no male end at all on either side?

Question by: Harold M on Nov 16, 2025, 7:12 AM

Correct, both connections are 1/2" female BSPP, callout G 1/2 - 14 on each side. You'd be threading two male BSPP fittings or adapters into it, one on each end. The swivel feature is what gives you the rotational flexibility during assembly, so you can adjust the angle of your line routing without fighting the fitting to get everything lined up.

Answer by: Customer Support on Nov 18, 2025, 8:11 AM
