90* Female Bspp Swivel Elbow

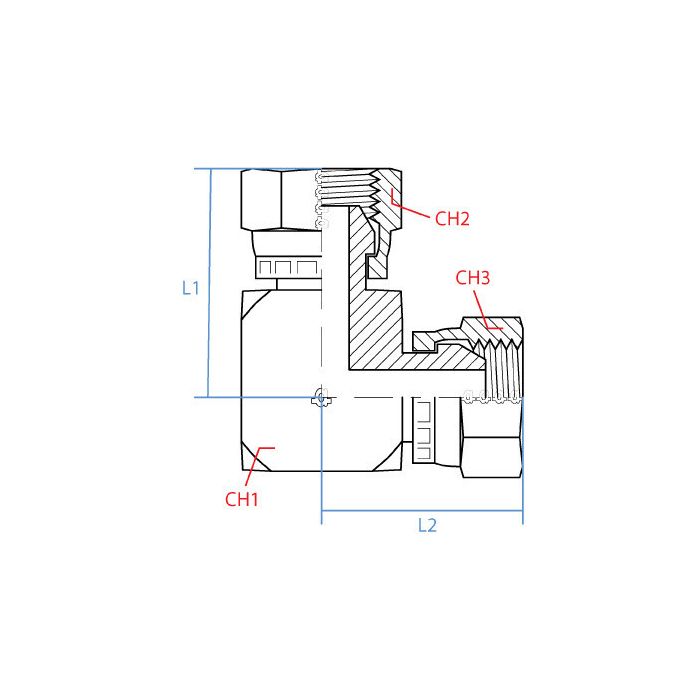

CH1 Width 16mm	CH2 Width 19mm	L1 Length 22mm	L2 Length 25mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9075-04-04	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an elbow on my hydraulic line. are both ends on this one G 1/4-19 BSPP female?

Question by: Ronnie H on Feb 7, 2026, 2:01 PM

Both ports are G 1/4 - 19 BSPP female, and both sides are the 1/4 inch size. It is a 90 degree swivel elbow, so it turns the line while keeping the same thread on each end.

Answer by: Customer Support on Feb 9, 2026, 6:00 AM

Both sides on this fitting are 1/4" BSPP female threads, right? Just wanna make sure before I go putting in an order.

Question by: Daryl S on Jan 20, 2026, 6:46 PM

both sides are G 1/4 - 19 BSPP female threads, same size on each end. So whatever you're connecting on both sides needs to be a 1/4" BSPP male fitting to mate up correctly. The swivel feature on the elbow also gives you some rotational flexibility during installation, which helps a good bit when you're working in tight spots and need to get the line angle just right without stressing the connection.

Answer by: Customer Support on Jan 22, 2026, 10:20 AM
