90* Male Npt X Female Bspp 9072-12-12

Specifications

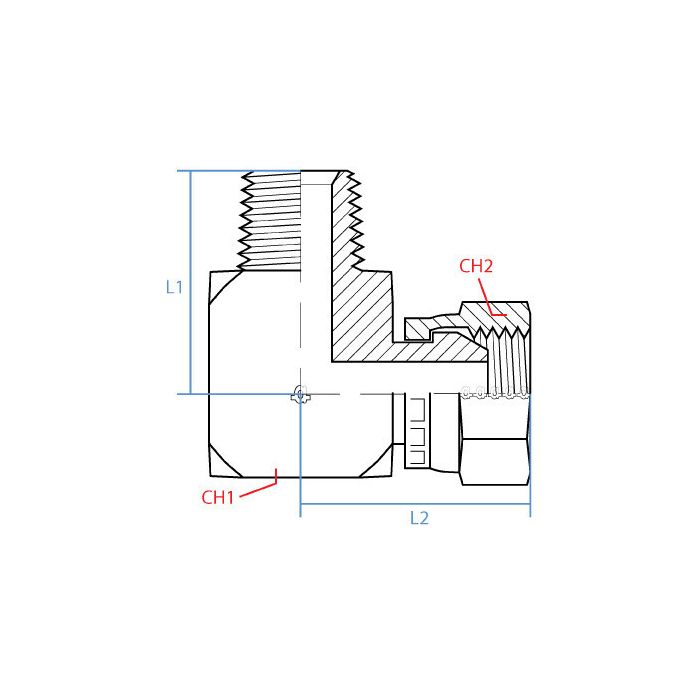

CH1 Width 28mm	CH2 Width 32mm	L1 Length 40mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 14 NPTF	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Npt	Side 2 Callout G 3/4 - 14	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9072-12-12	Product Weight 0.60 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow on my line, is this one 3/4 npt male on one side and 3/4 bspp female on the other?

Question by: Judy P on Mar 4, 2026, 1:11 PM

You are looking at a 90 degree Adaptall elbow with a 3/4 inch male NPTF end (3/4 - 14) on Side 1 and a 3/4 inch female BSPP end (G 3/4 - 14) on Side 2.

Answer by: Customer Support on Mar 6, 2026, 9:33 AM

Got a piece of equipment running BSPP ports and everything else on the line is NPT, will this fitting let me tie those two together at a 90 degree turn?

Question by: Floyd M on Jan 7, 2026, 1:05 PM

That's exactly what this one's built for. One end is 3/4" male NPT with a 3/4-14 thread, and the other is 3/4" female BSPP with a G 3/4-14 callout. The 90 degree elbow shape lets you change direction while bridging those two thread standards in a single fitting. Steel construction, so it holds up in working hydraulic environments. As long as both sides of your connection match those sizes and thread types, this drops right in.

Answer by: Customer Support on Jan 8, 2026, 2:01 PM

Will this fitting hold up okay in a hydraulic system on farm equipment? Just wanna make sure it's tough enough.

Question by: Terry W on Feb 7, 2026, 12:07 PM

Built from steel, this 90-degree elbow fitting is designed to withstand typical hydraulic pressures when properly installed. Its robust construction ensures reliable performance in demanding applications.

Answer by: Customer Support on Feb 9, 2026, 10:10 AM
