90* Male Bspp X Male Npt 9070-16-16

Specifications

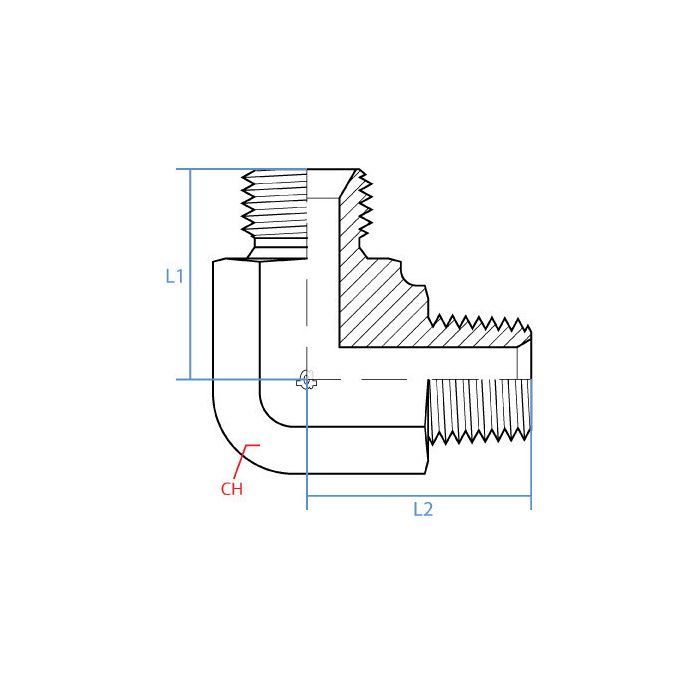

CH1 Width 33mm	L1 Length 48mm	L2 Length 45mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 1 - 11.5 NPTF	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9070-16-16	Product Weight 0.75 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up okay for hydraulic fluid?

Question by: Jerry W on Feb 25, 2026, 7:34 AM

Yes, this elbow adapter is constructed from steel, which should provide reliable performance in hydraulic applications.

Answer by: Customer Support on Feb 27, 2026, 6:31 AM

Got a metric-threaded BSPP fitting on one piece of equipment and a standard NPT port on another, will this elbow adapter actually bridge those two without needing a bunch of extra pieces in between?

Question by: Janet H on Apr 5, 2026, 4:17 PM

Both threads on this adapter are sized at 1 inch, with a G 1-11 BSPP on one side and a 1-11.5 NPTF on the other. That means you can connect a 1-inch BSPP male fitting directly to a 1-inch NPT female port in a single piece, no extra couplings needed. The 90-degree elbow shape also lets you change flow direction right at the connection point, which keeps things cleaner when your ports aren't facing the same direction.

Answer by: Customer Support on Apr 7, 2026, 10:39 AM

trying to hook a 1 inch BSPP port to a 1 inch NPT line, is this the right elbow for that?

Question by: Ricky H on May 27, 2025, 5:44 PM

For adapting between thread standards, it gives you a 90 degree steel elbow with a 1 inch male BSPP on one end (G 1 - 11) and a 1 inch male NPTF on the other (1 - 11.5 NPTF).

Answer by: Customer Support on May 29, 2025, 4:59 PM
