90* Male Bspp X Male Npt 9070-06-06

Specifications

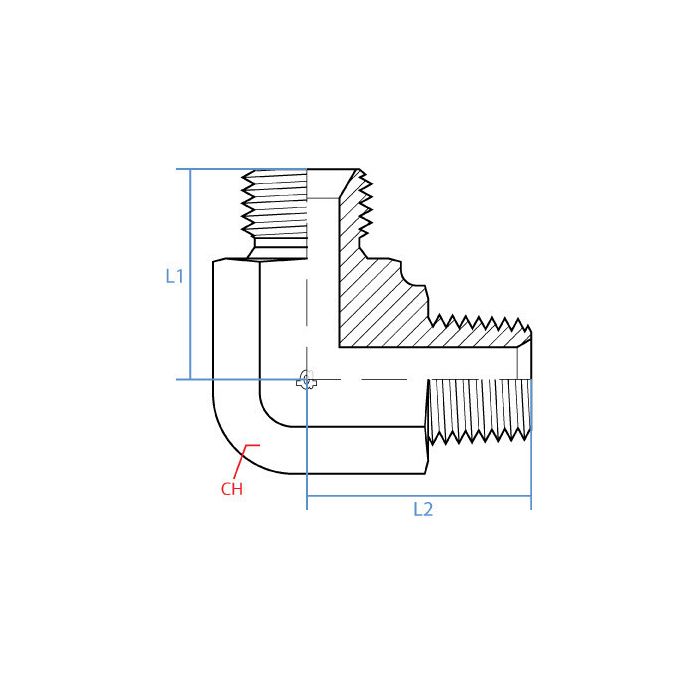

CH Width 19mm	L1 Length 29mm	L2 Length 29mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9070-06-06	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

What’s the deal with BSPP vs NPT, and why do I need an adapter?

Question by: Lyle G on Oct 20, 2025, 1:56 PM

These are different thread types commonly used in hydraulic systems. BSPP is British Standard Parallel Pipe, while NPT is National Pipe Tapered. This adapter lets you connect the two.

Answer by: Customer Support on Oct 22, 2025, 6:54 AM

trying to swap a fitting on a hose, is this the elbow that goes from G 3/8-19 to 3/8-18 NPTF, both male?

Question by: Floyd A on Aug 13, 2025, 9:31 PM

You’ve got it. One end is a 3/8 inch male BSPP with a G 3/8-19 thread, and the other end is a 3/8-18 NPTF male thread, set up in a 90 degree elbow.

Answer by: Customer Support on Aug 15, 2025, 6:22 AM

Got a piece of equipment running BSPP fittings and I need to tie it into an NPT line at a right angle. This the right part for that?

Question by: Randy R on Jan 21, 2026, 9:02 AM

For a 3/8" BSPP male to 3/8-18 NPT male connection at a 90 degree angle, yes, that's exactly what this fitting handles. The elbow configuration lets you make that direction change right at the junction instead of needing a separate elbow and adapter. Steel construction, 19mm wrench flats for a solid grip during install, and both legs measure 29mm in length so you can plan your spacing accordingly.

Answer by: Customer Support on Jan 23, 2026, 6:07 AM
