90* Mjic X Male Metric Adj Elb

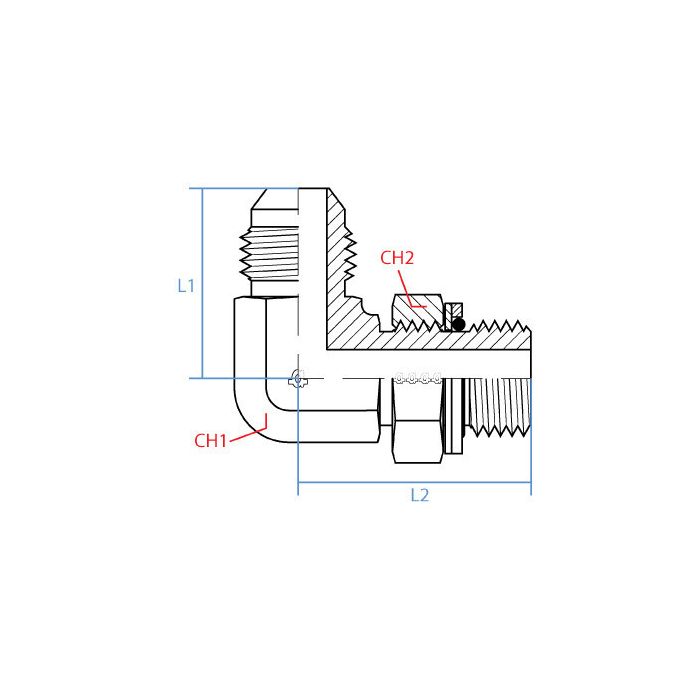

CH1 Width 41mm	CH2 Width 50mm	L1 Length 56.2mm	L2 Length 51.1mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size 42mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-20-42	Product Weight 1.65 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this elbow hold up okay in a hydraulic setup that sees fairly high pressure?

Question by: Lynn M on Nov 22, 2025, 11:48 AM

As a steel connector, this 90-degree elbow is engineered for sturdy connections in demanding industrial hydraulic applications.

Answer by: Customer Support on Nov 24, 2025, 10:56 AM

got a hydraulic line running M42 x 2.0 metric on one end and need to tie into a 1-1/4" JIC fitting at a 90 degree angle, this the right piece for that?

Question by: Lyle C on May 7, 2025, 6:07 AM

That's what this fitting handles. One side is a male JIC with a 1-5/8-12 UN thread, which corresponds to a 1-1/4" JIC size, and the other side is a male M42 x 2.0 metric thread. The 90 degree elbow lets you make that turn without needing a separate adapter in the line. Both sides are male, so make sure your mating ports are female on each end before ordering.

Answer by: Customer Support on May 9, 2025, 6:12 AM
