90* Mjic X Male Metric Adj Elb 9069-16-33

Specifications

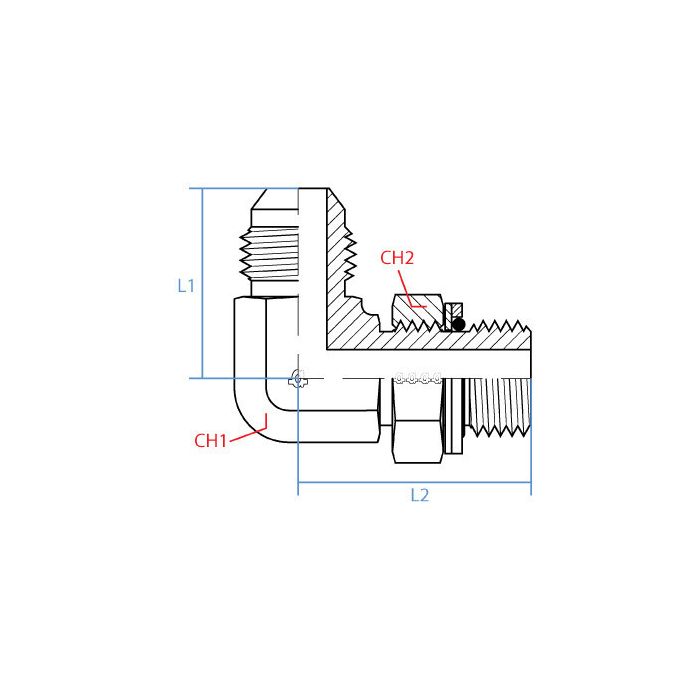

CH1 Width 33mm	CH2 Width 41mm	L1 Length 51.4mm	L2 Length 45.6mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M33 X 2.0	Side 2 Gender M	Side 2 Size 33mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-16-33	Product Weight 1.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hydraulic line coming off a metric port on some older equipment and need to tie into a JIC system -- what size threads am I working with on both ends of this fitting?

Question by: Denise A on Dec 20, 2025, 9:51 PM

One end carries a 1-5/16-12 UN male JIC thread, which is a 1-inch nominal size. The other end is an M33 x 2.0 male metric connection, 33mm in size. So if your equipment has an M33 x 2.0 female metric port and you need to transition to a JIC line, this fitting bridges that gap in a single piece.

Answer by: Customer Support on Dec 22, 2025, 8:10 PM

What size is this fitting on each end? Just want to make sure it'll work for my setup.

Question by: Troy M on Jun 30, 2025, 4:07 PM

It's got a 1-5/16 - 12 UN male JIC thread on one side, which is basically a 1" size. The other end is an M33 x 2.0 male metric connection, which comes out to 33mm.

Answer by: Customer Support on Jul 2, 2025, 6:53 AM

trying to swap out an elbow on a line, is this one the kind that’s 1-5/16-12 JIC on one end and M33 x 2.0 metric on the other?

Question by: Pete W on Mar 31, 2026, 8:40 PM

On the JIC side it uses a 1-5/16 - 12 UN male thread, and the other end is a male metric M33 x 2.0 connection. The listed side sizes are 1 inch for the JIC end and 33 mm for the metric end.

Answer by: Customer Support on Apr 2, 2026, 8:57 AM
