90* Mjic X Male Metric Adj Elb

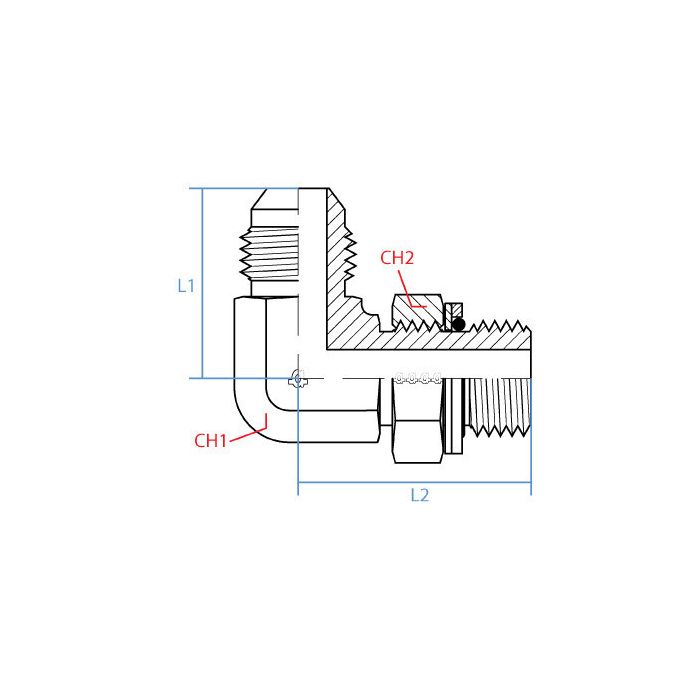

CH1 Width 33mm	CH2 Width 36mm	L1 Length 52.5mm	L2 Length 46mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M27 X 2.0	Side 2 Gender M	Side 2 Size 27mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-16-27	Product Weight 0.90 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this elbow fitting work for connecting a 1-inch JIC to a 27mm metric line? Just wanna make sure I'm understanding the description right.

Question by: Stan L on Aug 4, 2025, 11:34 AM

Yes, it is indeed designed to connect a 1-5/16 - 12 UN JIC male thread to an M27 X 2.0 metric male thread. This fitting should provide a secure connection between the two.

Answer by: Customer Support on Aug 6, 2025, 8:56 AM

trying to replace an elbow on a line, is this the one with 1-5/16-12 JIC male on one end and M27 x 2.0 male metric on the other?

Question by: Wayne E on Nov 15, 2025, 7:23 AM

On the connections, it matches a 1-5/16 - 12 UN JIC male thread on side 1 and an M27 x 2.0 metric male thread on side 2. It is a 90 degree elbow with male threads on both ends.

Answer by: Customer Support on Nov 16, 2025, 9:42 AM
