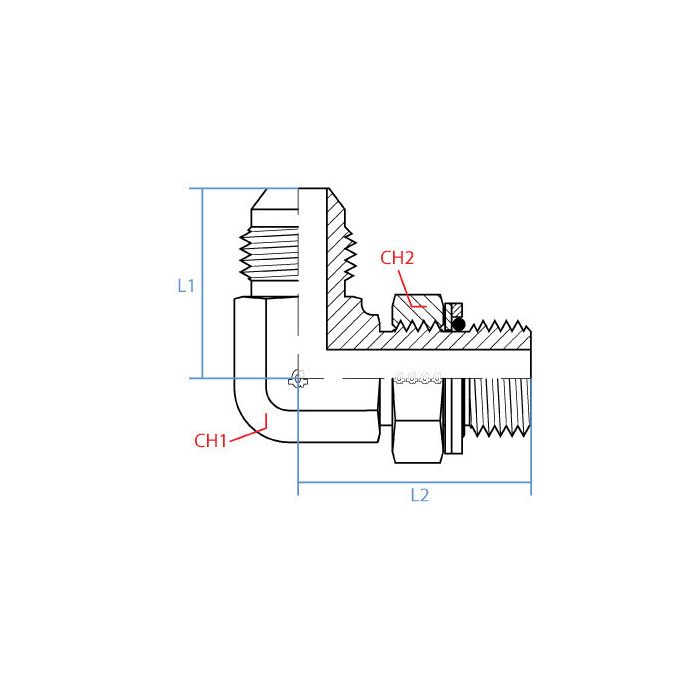

90* Mjic X Male Metric Adj Elb

CH1 Width 27mm	CH2 Width 36mm	L1 Length 47.8mm	L2 Length 41.1mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size 26mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-12-26	Product Weight 0.68 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap a hose over, is this elbow the one that’s 3/4 JIC male on one side and M26 x 1.5 male on the other?

Question by: Cody H on Nov 23, 2025, 1:24 PM

It matches a male JIC end with a 1-1/16 - 12 UN thread (listed as 3/4 size) on one side, and a male metric M26 x 1.5 thread (26 mm size) on the other. It’s a 90 degree adjustable elbow, so it’s meant for that JIC to metric male to male connection.

Answer by: Customer Support on Nov 25, 2025, 6:01 AM

got a piece of equipment running M26 x 1.5 metric ports and need to tie into a JIC line, this fitting handle that crossover?

Question by: Patty B on Oct 16, 2025, 10:20 AM

That's what this one's built for. One end is a 3/4" male JIC (1-1/16-12 UN) and the other is a male metric M26 x 1.5, so it bridges those two thread standards at a 90-degree angle. Steel construction keeps it solid under the kind of conditions you'd find in most industrial hydraulic setups.

Answer by: Customer Support on Oct 18, 2025, 8:47 AM
