90* Mjic X Male Metric Adj Elb 9069-10-22

Specifications

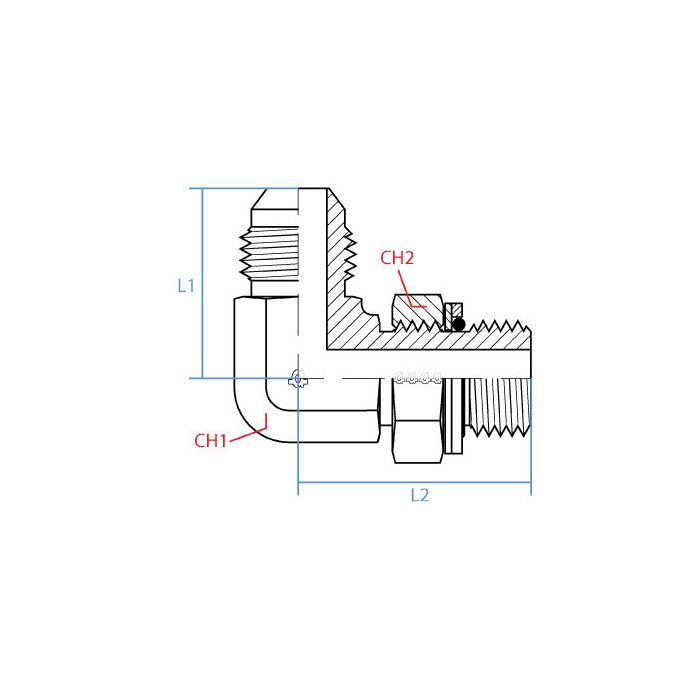

CH1 Width 22mm	CH2 Width 27mm	L1 Length 40.9mm	L2 Length 35.9mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-10-22	Product Weight 0.55 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to connect a JIC line to a metric port on a piece of equipment and need a 90 degree turn in there, does this adapter actually lock in place once you get the angle set, or does it stay loose?

Question by: Scott P on Jul 4, 2025, 7:52 PM

Once you get the elbow rotated to the angle you need, you tighten it down and it stays put. That adjustable feature is there specifically for situations where routing a straight adapter just won't work. You set the orientation before final assembly, lock it, and it holds. Makes a real difference in tight spots where the hose or line has to come off at a specific angle.

Answer by: Customer Support on Jul 6, 2025, 3:09 PM

Will this elbow work to connect a 5/8" JIC line to a M22 metric port?

Question by: Shawn F on Sep 8, 2025, 4:06 PM

Yes, this 90-degree elbow adapter is designed to connect a 5/8" Male JIC fitting to a Male Metric M22 x 1.5 port.

Answer by: Customer Support on Sep 9, 2025, 9:55 PM

got a hose end that’s 5/8 JIC. will this elbow screw right onto that and then into an M22 x 1.5 port?

Question by: Steve T on Jun 21, 2025, 9:13 PM

For connecting those two standards, it matches up as a 5/8 inch male JIC with 7/8-14 UNF threads on one side, and a male metric M22 x 1.5 on the other. It is meant to join a JIC side to a metric port at a 90 degree angle.

Answer by: Customer Support on Jun 23, 2025, 6:21 AM
