90* Mjic X Male Metric Adj Elb

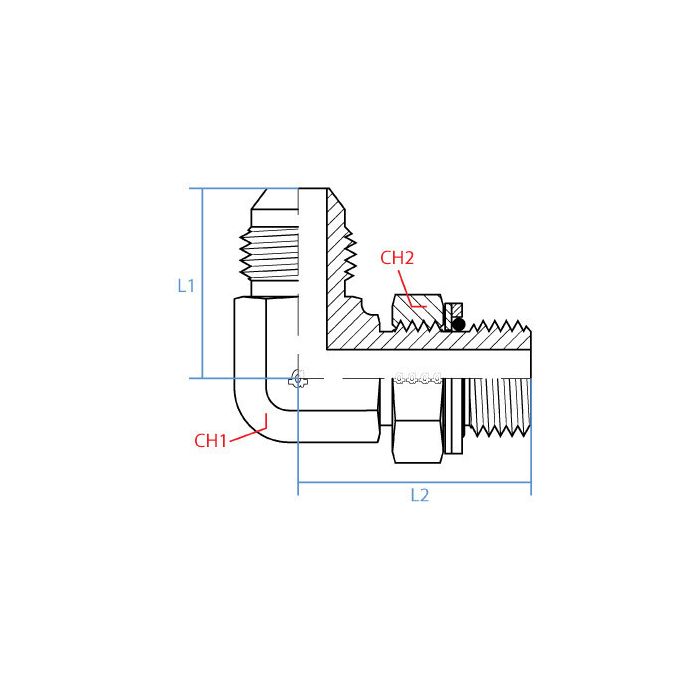

CH1 Width 22mm	CH2 Width 24mm	L1 Length 35mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-10-18	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to replace an elbow on a hose, does this one match 7/8-14 UNF JIC male on one end and M18 x 1.5 metric male on the other?

Question by: Merle J on Jul 18, 2025, 7:18 AM

Side 1 is a JIC male with 7/8 - 14 UNF threads and a 5/8 inch size, and side 2 is a metric male adjustable connection with M18 x 1.5 threads and an 18 mm size.

Answer by: Customer Support on Jul 20, 2025, 6:20 AM
