90* Mjic X Male Metric Adj Elb 9069-08-22

Specifications

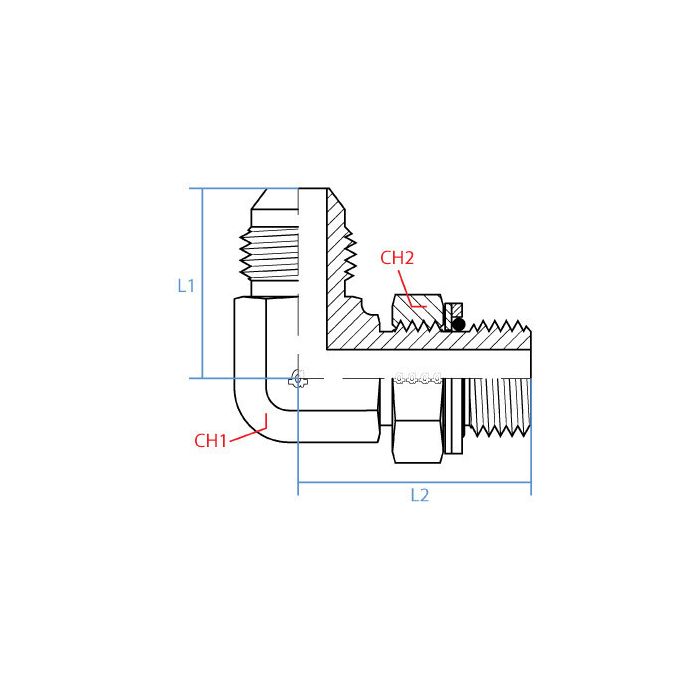

CH1 Width 22mm	CH2 Width 27mm	L1 Length 33mm	L2 Length 41mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number FMC-102-1761, Alternate Part Number MI-05365229, Alternate Part Number MINO-03671X74515	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-08-22	Product Weight 0.35 lbs

Product Questions & Answers 3

Product Questions & Answers

Hey, will this fitting work with my setup that uses both metric and standard sizes?

Question by: Shawn B on Oct 25, 2025, 1:56 PM

This elbow fitting is designed to connect a 3/4 - 16 UNF JIC male end to an M22 x 1.5 metric male end, allowing you to adapt between the two systems.

Answer by: Customer Support on Oct 26, 2025, 7:01 PM

Got a machine running metric fittings on one end and JIC on the other, does this elbow actually bridge both without needing some kind of adapter stack?

Question by: Sherry C on Feb 19, 2026, 11:11 AM

Yeah, that's exactly what it's built for. One end is a 3/4-16 UNF JIC male connection and the other is an M22 x 1.5 metric male, so it handles that crossover in a single fitting. No stacking, no extra pieces. The 90 degree angle also helps when you're working in tight spots where a straight fitting just won't route cleanly.

Answer by: Customer Support on Feb 21, 2026, 6:44 AM

got a hose end that’s 3/4-16 JIC male. will this elbow mate up on that side?

Question by: Curt G on Mar 1, 2026, 3:46 PM

On the JIC end, it has a 3/4 - 16 UNF JIC male connection (listed as 1/2 inch size). The other end is a male metric M22 x 1.5.

Answer by: Customer Support on Mar 3, 2026, 6:19 AM
