90* Mjic X Male Metric Elbow

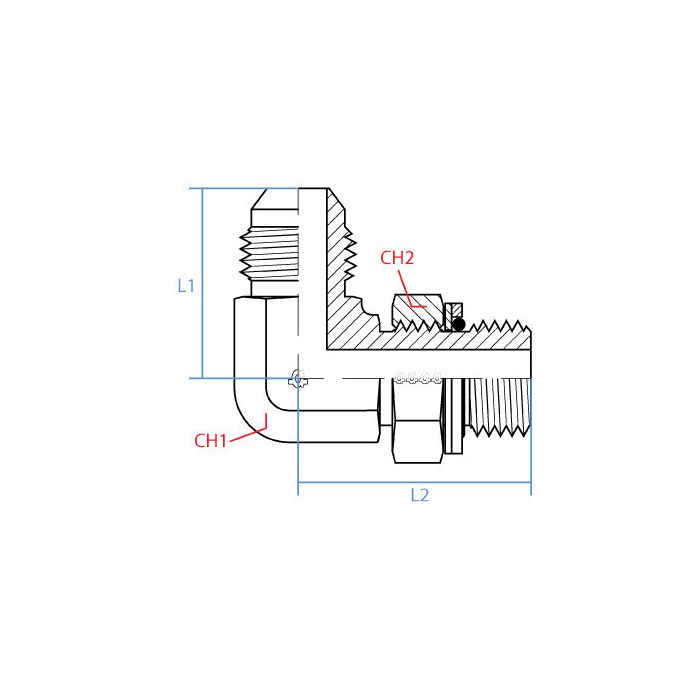

CH1 Width 22mm	CH2 Width 27mm	L1 Length 40mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-08-20	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work for connecting a 1/2" JIC line to a M20 port?

Question by: Todd D on Oct 19, 2025, 11:54 AM

This 90-degree elbow is designed specifically to connect a 3/4 - 16 UNF JIC male connection to a M20 x 1.5 metric male connection.

Answer by: Customer Support on Oct 21, 2025, 6:22 AM

got a piece of equipment here with an M20 x 1.5 port and I need to tie into a JIC line, this the right fitting for that?

Question by: Peggy M on Jan 12, 2026, 6:53 PM

That's what this elbow is built for. One end is a 3/4-16 UNF JIC male connection and the other is an M20 x 1.5 metric male, so it bridges those two thread standards in a single 90-degree fitting. Both sides are male, so make sure your mating ports are female on each end before ordering.

Answer by: Customer Support on Jan 14, 2026, 6:36 PM
