90* Mjic X Male Metric Adj Elb 9069-08-18

Specifications

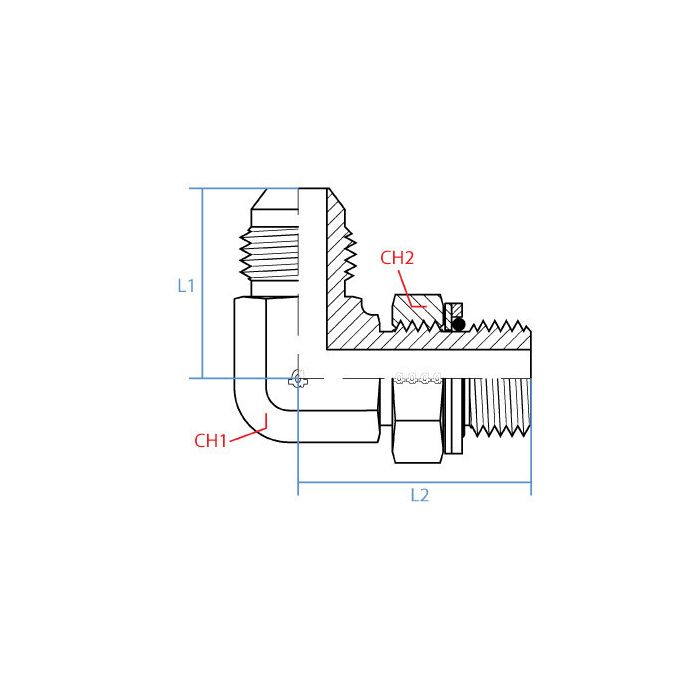

CH1 Width 19mm	CH2 Width 24mm	L1 Length 37.8mm	L2 Length 31.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-08-18	Product Weight 0.23 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a hose end over, is this the elbow that goes from 3/4-16 UNF JIC male to M18x1.5 metric male?

Question by: Larry C on Oct 17, 2025, 8:28 AM

For a straight size match, you’re looking at a 90 degree steel elbow with a 3/4 - 16 UNF JIC male on one side and an M18 x 1.5 metric male on the other, and that is exactly how this fitting is configured.

Answer by: Customer Support on Oct 19, 2025, 6:52 AM

Got a metric port on my cylinder that's M18 x 1.5 and need to swing the line off at a right angle, will this fitting hook up to a standard JIC hose end on the other side?

Question by: Duane R on Mar 2, 2026, 3:58 PM

Right connection for that setup. One end is M18 x 1.5 metric male and the other is 3/4-16 UNF JIC male, so if your hose assembly has a female JIC swivel on it, those two will mate up fine. The 90-degree elbow handles the direction change in one piece, no extra adapter needed in between.

Answer by: Customer Support on Mar 4, 2026, 6:11 AM

So this will go from a JIC to a metric fitting then?

Question by: Brenda J on Jul 6, 2025, 8:28 PM

That's right, this elbow adapts from a 3/4 - 16 UNF JIC male end to an M18 X 1.5 metric male end.

Answer by: Customer Support on Jul 8, 2025, 7:36 PM
