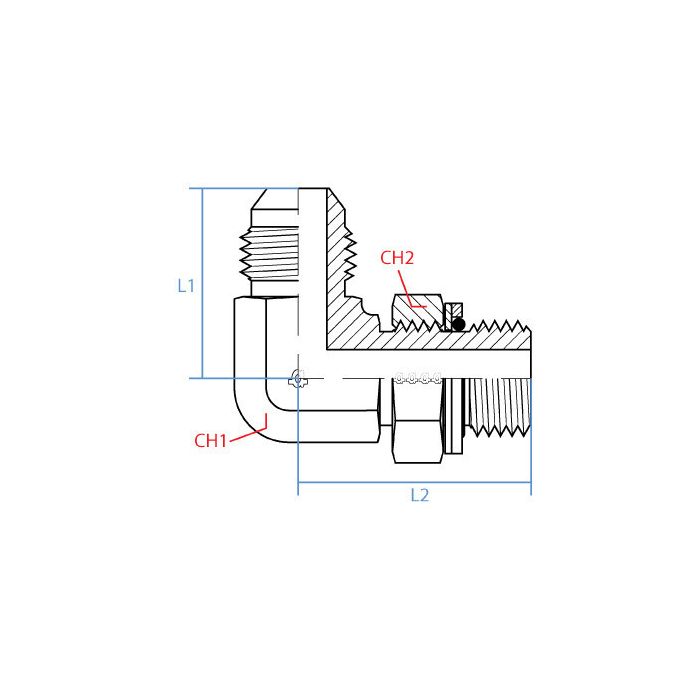

90* Mjic X Male Metric Adj Elb

CH1 Width 19mm	CH2 Width 22mm	L1 Length 38.1mm	L2 Length 31.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number C1JE21, Alternate Part Number FMC3625172	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-08-16	Product Weight 0.23 lbs

Product Questions & Answers

got a hose end that’s 3/4-16 UNF JIC male. will this elbow mate up on that side?

Question by: Diane T on Jul 30, 2025, 1:05 PM

On the JIC side, it has a 3/4 - 16 UNF JIC male connection, so it matches fittings that call for that exact JIC thread.

Answer by: Customer Support on Jul 31, 2025, 5:54 PM
