90* Mjic X Male Metric Adj Elb 9069-06-16

Specifications

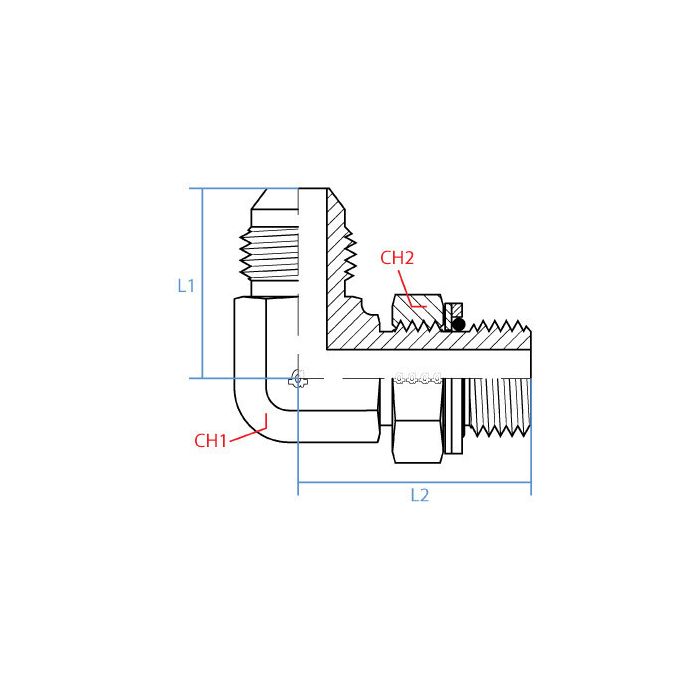

CH1 Width 19mm	CH2 Width 22mm	L1 Length 36mm	L2 Length 26.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number MI-02205854, Alternate Part Number MINO-03671X84807	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-06-16	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap an old elbow out, is this one the kind that goes from 9/16-18 JIC to M16 x 1.5 metric?

Question by: Cindy D on Dec 21, 2025, 2:56 PM

It is a 90 degree steel elbow with a male JIC end threaded 9/16-18 UNF and a male metric end threaded M16 x 1.5, so it is meant for joining those two thread types in one connector.

Answer by: Customer Support on Dec 23, 2025, 7:45 AM

Got a machine running M16 x 1.5 metric ports but my hose ends are 9/16-18 JIC, will this fitting bridge that gap without needing extra adapters?

Question by: Rusty R on Jan 29, 2026, 6:37 PM

That's what this one's built for. One end is male JIC at 9/16-18 UNF, the other is male metric at M16 x 1.5, so you're connecting those two thread types directly in a single 90-degree elbow. No additional adapter in between. The steel construction keeps it solid under normal industrial conditions, and the compact dimensions, 36mm on L1 and 26.5mm on L2, mean it tucks in reasonably tight if space is a consideration around your port.

Answer by: Customer Support on Jan 30, 2026, 8:21 PM

Will this fitting work with both metric and JIC setups?

Question by: Hank M on Aug 6, 2025, 4:10 PM

Yes, this Adaptall elbow is designed to connect a male JIC end (9/16-18 UNF thread) to a male metric end (M16 x 1.5 thread).

Answer by: Customer Support on Aug 8, 2025, 3:27 PM
