90* Mjic X Male Metric Adj Elb

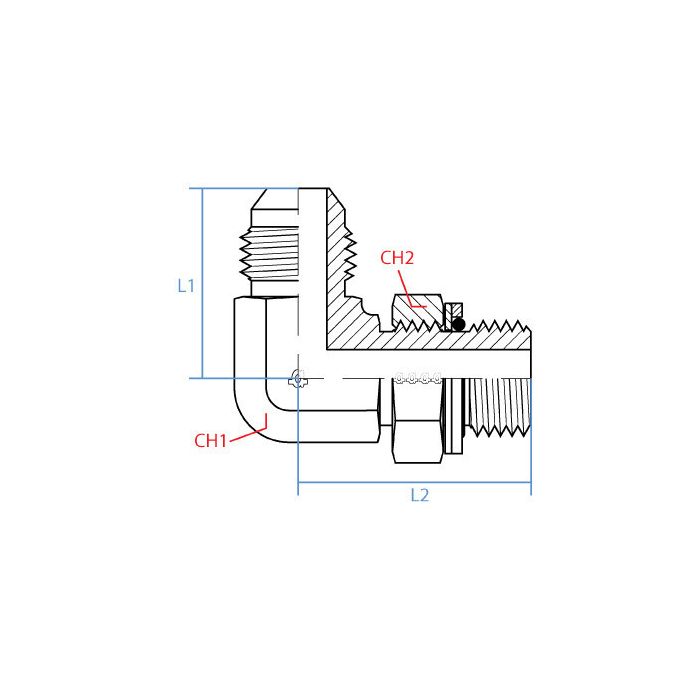

CH1 Width 14mm	CH2 Width 19mm	L1 Length 32.3mm	L2 Length 25.6mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-06-14	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 9/16-18 JIC, will this elbow mate up to it and then go into an M14 x 1.5 port?

Question by: Gary E on Apr 7, 2025, 9:58 PM

Side 1 is a male 9/16 - 18 UNF JIC (3/8 inch size) and side 2 is a male M14 x 1.5 metric (14 mm size). It is made to connect those two thread types in a 90 degree elbow.

Answer by: Customer Support on Apr 9, 2025, 4:37 PM

Got a piece of equipment running M14 x 1.5 metric ports and need to tie in some JIC hose ends at a right angle, this the fitting that'd work for that?

Question by: Cheryl E on Jun 25, 2025, 12:19 PM

That's what this one handles. One side is a 9/16-18 UNF male JIC, the other is M14 x 1.5 male metric, and the 90-degree elbow puts those two at a right angle to each other. Both sides are male, so make sure your mating ports are female on both ends before ordering.

Answer by: Customer Support on Jun 27, 2025, 9:26 AM
