90* Mjic X Male Metric Adj Elb

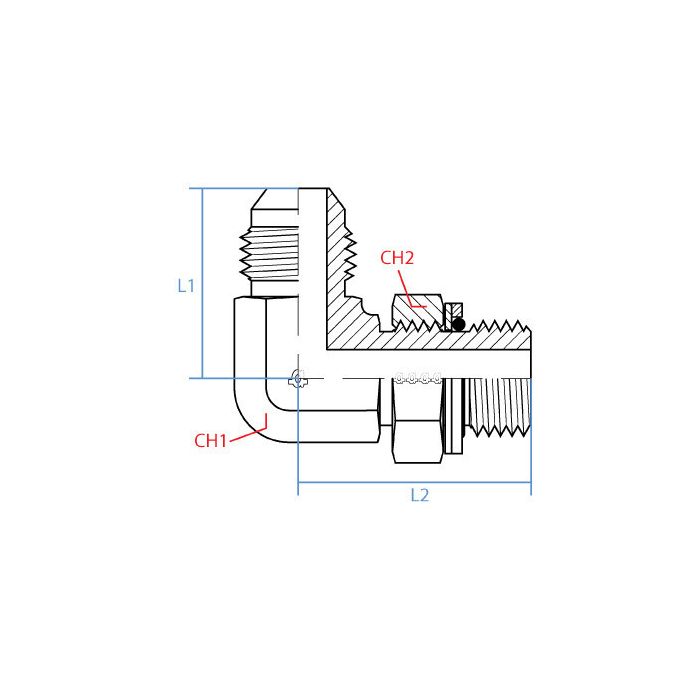

CH1 Width 14mm	CH2 Width 17mm	L1 Length 31.6mm	L2 Length 27.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number MI-02938832, Alternate Part Number MINO-03671X84803	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-06-12	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 3/8 JIC, will this elbow screw right onto it?

Question by: Brent R on Aug 25, 2025, 9:11 AM

On the JIC side, it is a male 3/8 inch JIC with a 9/16-18 UNF thread callout, so it matches up to a 3/8 JIC female swivel.

Answer by: Customer Support on Aug 26, 2025, 3:41 PM

Got a line coming off a metric port at 12mm and need to transition over to JIC on the other end, this elbow gonna work for that?

Question by: Ronnie G on Aug 11, 2025, 4:30 PM

That's what this fitting is built for. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, and the other is a Male Metric 12mm with an M12 x 1.5 thread. The 90 degree angle lets you make that transition without needing a straight adapter and then a separate elbow, so it cleans up the routing considerably. Both sides are male, so make sure your ports are female on each end before you order.

Answer by: Customer Support on Aug 12, 2025, 4:52 PM
