90* Mjic X Male Metric Elbow

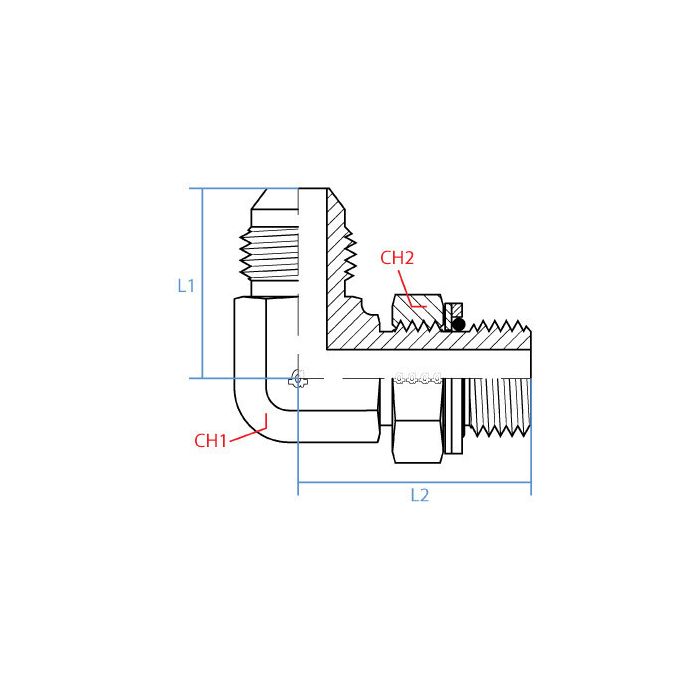

CH1 Width 14mm	CH2 Width 17mm	L1 Length 31.6mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-05-12	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric port on my pump housing and need to tie in a JIC line at a right angle, will this fitting bridge that gap?

Question by: Phil C on Nov 6, 2025, 6:33 AM

Right angle between a JIC line and an M12 x 1.5 metric port is exactly what this adapter handles. One end is a 5/16" Male JIC with a 1/2-20 UNF thread, the other is a Male M12 x 1.5 metric thread, and the 90-degree elbow geometry lets you redirect the line without needing extra tubing bends. It's made by Adaptall out of steel, so it holds up in working hydraulic environments. Just make sure both your JIC line and your metric port match those thread specs before ordering.

Answer by: Customer Support on Nov 7, 2025, 9:20 PM
