90* Mjic X Male Metric Adj Elb 9069-04-12

Specifications

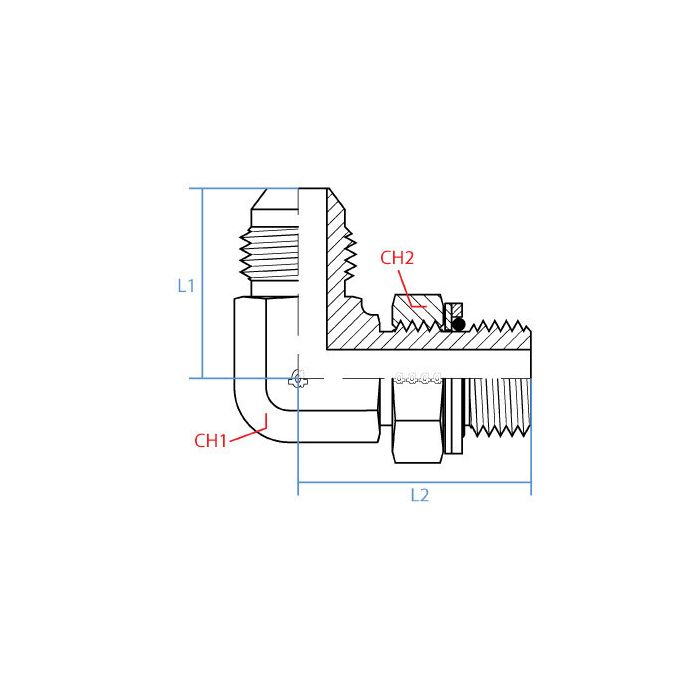

CH1 Width 14mm	CH2 Width 17mm	L1 Length 28mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number FMC102-1826, Alternate Part Number MI-05512481, Alternate Part Number MINO-03671X10009	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-04-12	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a fitting on a hose, is this the one that goes from 1/4 JIC male to M12 x 1.5 male with a 90 bend?

Question by: Ralph C on Jan 12, 2026, 12:52 PM

On one end you have a 7/16-20 UNF JIC male, which is the 1/4 inch JIC size callout. The other end is an M12 x 1.5 metric male. It is a 90 degree elbow adapter, so it turns the line at a right angle.

Answer by: Customer Support on Jan 13, 2026, 2:10 PM

what's the thread size on both ends of this elbow adapter?

Question by: Jimmy A on Feb 6, 2026, 9:12 PM

One end is a 7/16-20 UNF JIC male fitting, and the other end is an M12 x 1.5 metric male. So you've got a 1/4 inch JIC side and a 12mm metric side, both male. That 90 degree bend makes it handy when you're working in a tight spot and need to change direction between those two thread types without a lot of extra hardware in the way.

Answer by: Customer Support on Feb 8, 2026, 8:41 AM

Will this fitting hold up alright in an oily environment?

Question by: Travis S on Jul 28, 2025, 8:20 AM

This elbow adapter is made from high-quality steel and designed to withstand mechanical wear and tear, which makes it suitable for use in industrial environments where exposure to oil is common.

Answer by: Customer Support on Jul 29, 2025, 9:45 AM
