90* Mjic X Male Metric Adj Elb 9069-04-10

Specifications

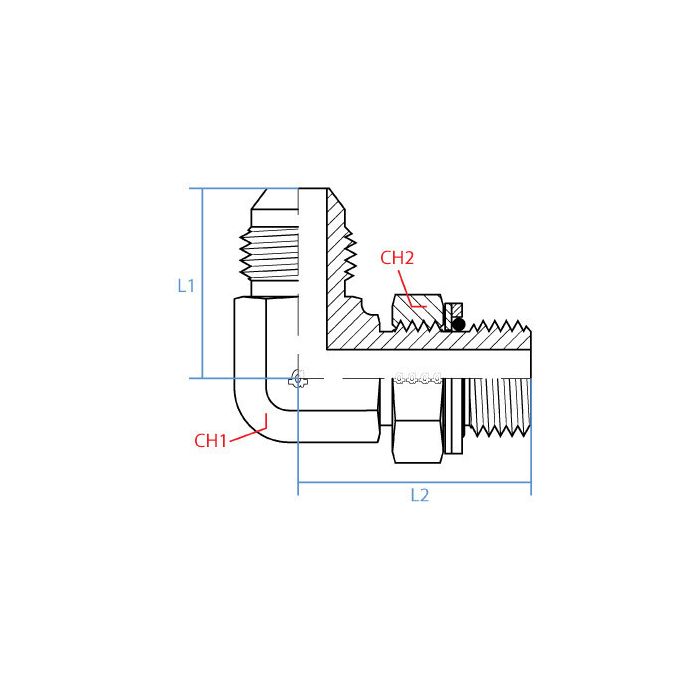

CH1 Width 12mm	CH2 Width 14mm	L1 Length 23mm	L2 Length 25mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9069-04-10	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work to connect a 1/4" JIC to a M10 metric line?

Question by: Eddie T on Oct 8, 2025, 6:40 PM

This elbow adapter is made to connect a 7/16 - 20 UNF male JIC fitting to a M10 X 1.0 male metric fitting at a 90-degree angle.

Answer by: Customer Support on Oct 9, 2025, 8:08 PM

got a hose end that’s 7/16-20 JIC, will this elbow mate up to it and then go into an M10 x 1.0 port?

Question by: Duane B on Aug 16, 2025, 7:54 AM

On the JIC side it is a 7/16 - 20 UNF male, which is the 1/4 inch JIC size. The other end is a male metric M10 x 1.0, so it’s meant to thread into an M10 x 1.0 female port.

Answer by: Customer Support on Aug 17, 2025, 8:10 AM

got a line running M10 x 1.0 metric on one end and JIC on the other, this elbow gonna bridge that gap?

Question by: Patty S on Oct 6, 2025, 3:29 PM

That's what this fitting does. One end is a 7/16-20 UNF male JIC, the other is M10 x 1.0 male metric, so it connects those two thread types at a 90-degree angle. Steel construction keeps it solid in fluid power setups where you need a reliable transition between the two standards.

Answer by: Customer Support on Oct 8, 2025, 6:29 AM
