Male Jic X Male Metric W/ Seal

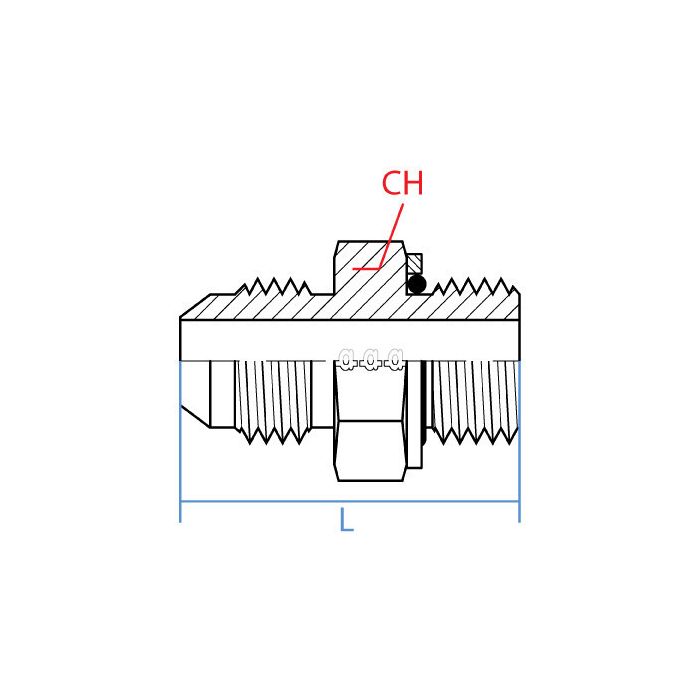

CH Width 41mm	L Length 58mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M33 X 2.0	Side 2 Gender M	Side 2 Size 33mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-20-33	Product Weight 0.65 lbs

Product Questions & Answers 2

Product Questions & Answers

What thread specs am I working with on both ends of this fitting, trying to make sure it'll mate up right before I order a handful of 'em.

Question by: Brent H on Jan 31, 2026, 9:57 AM

One end carries a 1-5/8 - 12 UN male JIC thread, and the other is a male metric M33 X 2.0. Both ends are male, so you'll need female counterparts on whatever you're connecting to. No adjustable end on this one, and no thread sealant required since the metric side includes a seal.

Answer by: Customer Support on Feb 1, 2026, 10:08 AM

What kind of steel is this made out of? Just wondering how it holds up.

Question by: Ralph G on May 31, 2025, 3:47 PM

Crafted from high-quality steel, this connector is built for reliability and long service life in industrial settings.

Answer by: Customer Support on Jun 2, 2025, 6:14 AM
