Male Jic X Male Metric W/Seal

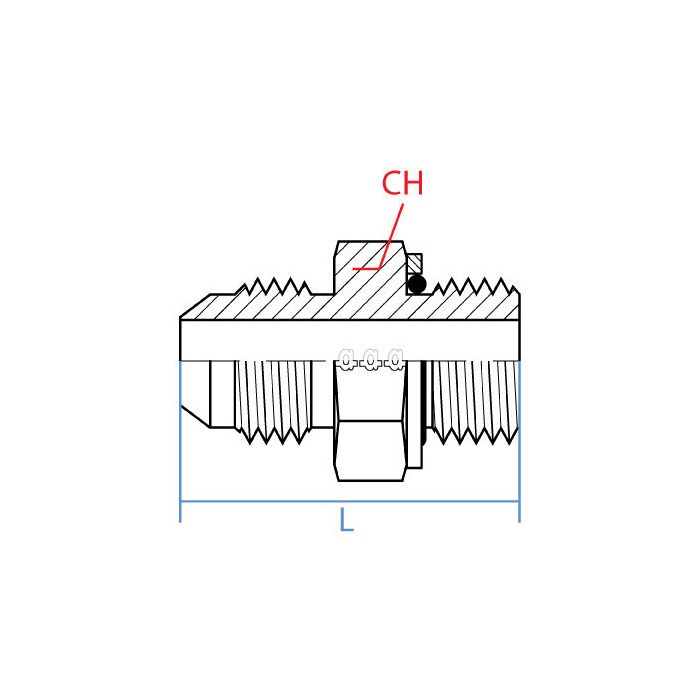

CH Width 36mm	L Length 53.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M27 X 2.0	Side 2 Gender M	Side 2 Size 27mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number 7400-16-27	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-16-27	Product Weight 0.45 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric port on a manifold block that I need to tie into a JIC line, this a straight-through adapter or does it got some kind of angle to it?

Question by: Neil C on Jun 14, 2025, 4:53 PM

Straight through, no angle. Both ends come off the same centerline, so it'll thread right in without any offset or repositioning of your line. Side one is a 1-5/16-12 UN JIC male and side two is an M27 x 2.0 metric male, and the overall length runs 53.3mm with a 36mm wrench flat. Clean, direct connection between those two thread types with no fuss.

Answer by: Customer Support on Jun 16, 2025, 11:13 AM
