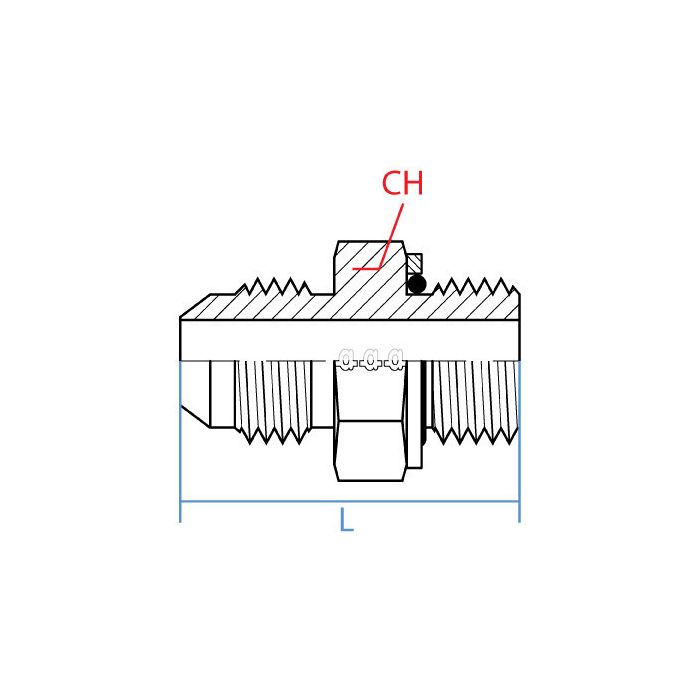

Male Jic X Male Metric W/Seal

CH Width
36mm
L Length
52.6mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
1-1/16 - 12 UN
Side 1 Gender
M
Side 1 Size
3/4"
Side 1 Type
Jic
Side 2 Callout
M27 X 2.0
Side 2 Gender
M
Side 2 Size
27mm
Side 2 Type
Metric
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9068-12-27
Product Weight
0.35 lbs

Product Questions & Answers

Will this fitting hold up alright in a hydraulic system on farm equipment? Just want to make sure it's tough enough.
Question by: Warren C on Jun 6, 2025, 8:19 AM
Steel construction ensures this connector offers long-lasting performance in demanding industrial settings. It's designed for high-precision applications, suggesting it can handle the pressures typically found in hydraulic systems.
Answer by: Customer Support on Jun 8, 2025, 6:43 AM
Got a piece of equipment running M27 X 2.0 metric ports and my hydraulic lines are all JIC fittings, this adapter gonna bridge that gap without needing something in between?
Question by: Todd C on Dec 22, 2025, 7:24 AM
That's exactly what it handles. One end is a 1-1/16 - 12 UN JIC male thread, the other is an M27 X 2.0 metric male thread, so it connects those two standards directly with no intermediate fittings required. It comes with a seal built in, which takes care of the sealing side of things at the metric end. Steel construction, straight configuration, and it measures out at 52.6mm long with a 36mm wrench width, so it's a solid, straightforward solution for that crossover connection.
Answer by: Customer Support on Dec 24, 2025, 6:07 AM
