Male Jic X Male Metric W/Seal

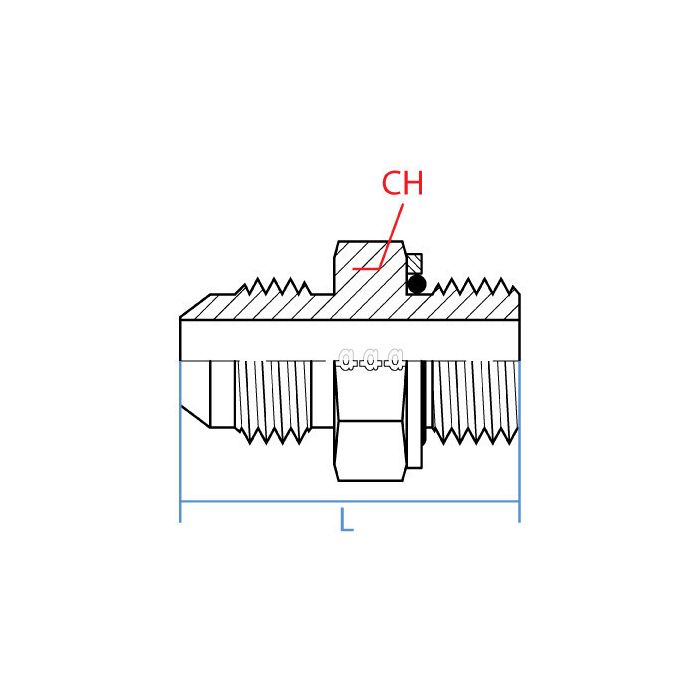

CH Width 36mm	L Length 51.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size 26mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number FMC102-2047, Alternate Part Number MI-02205846, Alternate Part Number MINO-03671X84794	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-12-26	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a metric port on my hydraulic manifold that's M26 x 1.5 and need to tie into a JIC line on the other end. This the right fitting for that?

Question by: Shawn H on Nov 19, 2025, 6:59 PM

That's what this one's built for. One end is a 1-1/16-12 UN JIC male thread, and the other is an M26 x 1.5 metric male with a seal included. Steel construction, straight body, 51.8mm long with a 36mm wrench flat. If your manifold port and your JIC line both match those callouts, you're in good shape.

Answer by: Customer Support on Nov 21, 2025, 6:22 AM

got a hose end that’s 1-1/16 - 12 UN JIC male on it. Is this the right adapter to go over to M26 x 1.5 metric male?

Question by: Eddie B on Dec 8, 2025, 7:49 PM

For a straight male-to-male hookup, it matches those thread callouts: 1-1/16 - 12 UN JIC male on one side and M26 x 1.5 metric male with seal on the other.

Answer by: Customer Support on Dec 10, 2025, 9:25 AM
