Male Jic X Male Metric W/Seal

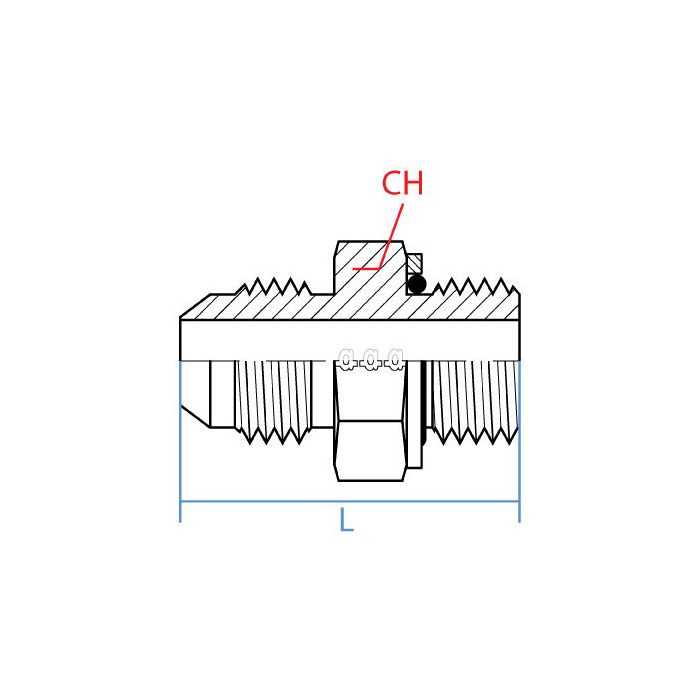

CH Width 30mm	L Length 44.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number 9068-1022	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-10-22	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric port on a European-built hydraulic unit and need to adapt it over to JIC on the other end. This a straight shot, no funny angles or nothin?

Question by: Ross S on Sep 13, 2025, 3:49 PM

Straight adapter, no bends or offsets. One end is 7/8-14 UNF JIC male, the other is M22 x 1.5 metric male with a seal included. Total length runs 44.4mm and the hex width is 30mm, so it's a compact unit that fits well in tight quarters. If your port matches those specs on both ends, you're good to go.

Answer by: Customer Support on Sep 14, 2025, 5:35 PM
