Male Jic X Male Metric W/ Seal

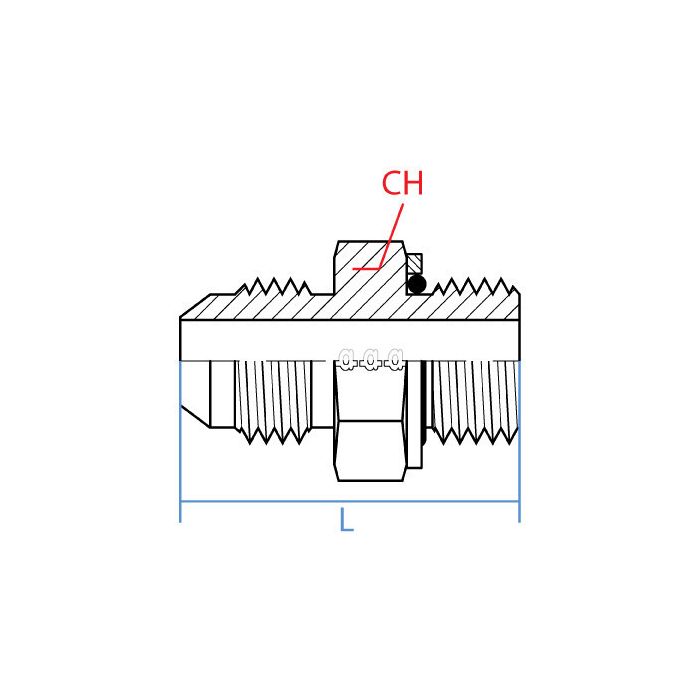

CH Width 24mm	L Length 42.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number 9068-1018	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-10-18	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 7/8-14 UNF JIC male, will this adapter mate up to it and still give me an M18 x 1.5 male on the other side?

Question by: Harvey S on Apr 7, 2025, 8:47 AM

On the JIC side, you are working with a male 5/8 inch JIC with a 7/8-14 UNF thread. The other end is a male metric M18 x 1.5, and it includes a seal on that metric side.

Answer by: Customer Support on Apr 9, 2025, 6:14 AM

Is that 42.2mm length the total length, or just the threaded part?

Question by: Vince G on Mar 12, 2026, 10:43 AM

That's the overall length from end to end.

Answer by: Customer Support on Mar 13, 2026, 1:26 PM
