Male Jic X Male Metric W/Seal 9068-08-16

Specifications

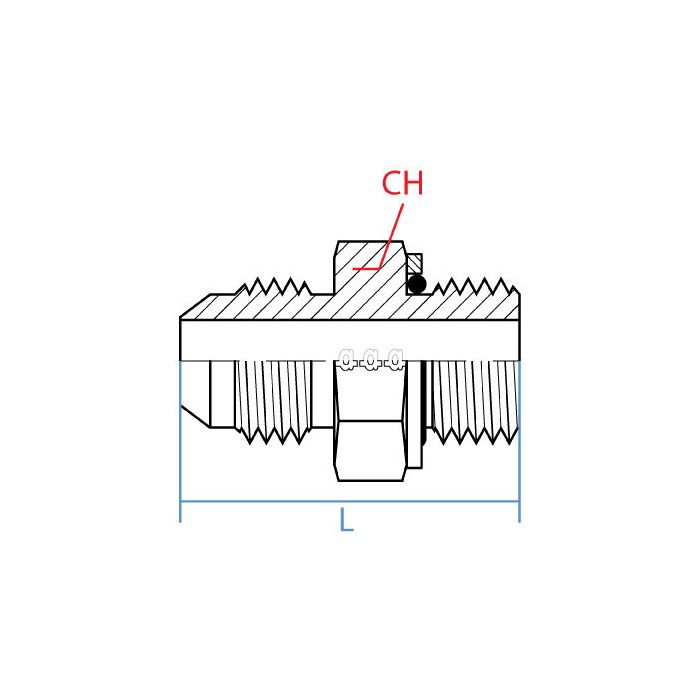

CH Width 22mm	L Length 38.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number MI-02166564, Alternate Part Number MINO-03671J02800	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-08-16	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a metric M16 x 1.5 port on a hydraulic block and need to tie into a JIC line on the other end. this fitting gonna work for that?

Question by: Todd H on Feb 17, 2026, 9:39 PM

That's exactly the application this connector handles. One end is 1/2" JIC with a 3/4-16 UNF thread, and the other side is 16mm metric at M16 x 1.5. Both ends are male, so you'd be threading each side directly into its respective female port. It's a straight connector, steel construction, 38.3mm long and 22mm wide, made by Adaptall. No adapters or extra hardware needed to make that male-to-male JIC-to-metric connection work.

Answer by: Customer Support on Feb 19, 2026, 9:57 AM

got a hose end that’s 3/4-16 UNF JIC on one side and the machine port is M16x1.5. is this the right adapter?

Question by: Shane A on Oct 12, 2025, 1:13 PM

Match-up looks right for this connector. One end is a male JIC with a 3/4-16 UNF thread callout, and the other end is a male metric M16 x 1.5, so it bridges those two thread systems in a straight steel fitting.

Answer by: Customer Support on Oct 14, 2025, 7:32 AM
