Male Jic X Male Metric W/Seal

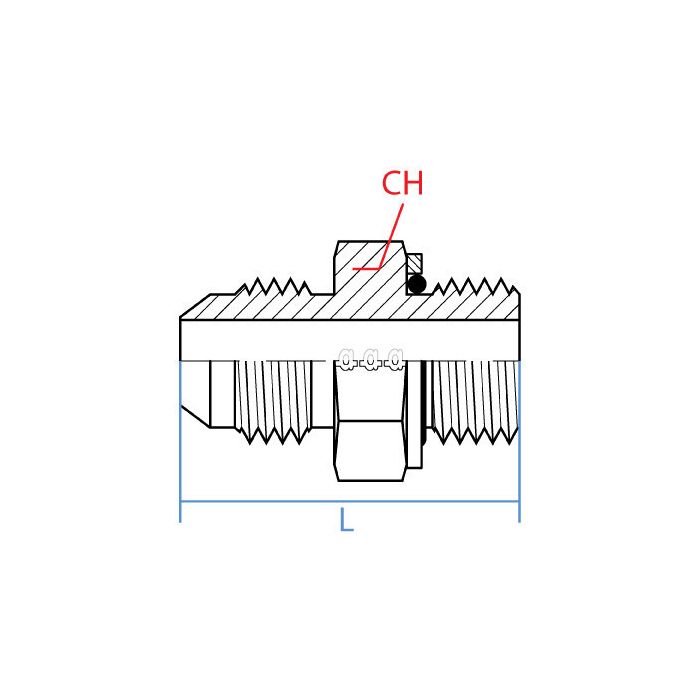

CH Width 20.5mm	L Length 36.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-08-12	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 3/4-16 UNF JIC male, will this screw right into it and give me an M12 x 1.5 male on the other side?

Question by: Merle S on Nov 15, 2025, 7:52 AM

For tying two standards together, that’s exactly what it’s built for: one end is a male JIC with 3/4 - 16 UNF threads in a 1/2 inch size, and the other end is a male Metric M12 x 1.5 in a 12 mm size with a seal.

Answer by: Customer Support on Nov 16, 2025, 6:32 PM

Got a metric port on a hydraulic block and need to tie into a JIC line, this a straight shot or is there any offset to it?

Question by: Lyle P on Oct 28, 2025, 9:45 AM

Straight through, no offset. The fitting runs male JIC on one end and male Metric on the other in a direct inline configuration, so it won't add any angular deviation to your hydraulic connections. The JIC side is 3/4-16 UNF at a 1/2" size, and the Metric end is M12 x 1.5 at 12mm. Overall length comes in at 36.9mm, so factor that into your clearance before you go wrenching it in.

Answer by: Customer Support on Oct 29, 2025, 1:46 PM
