Male Jic X Male Metric W/Seal 9068-06-18

Specifications

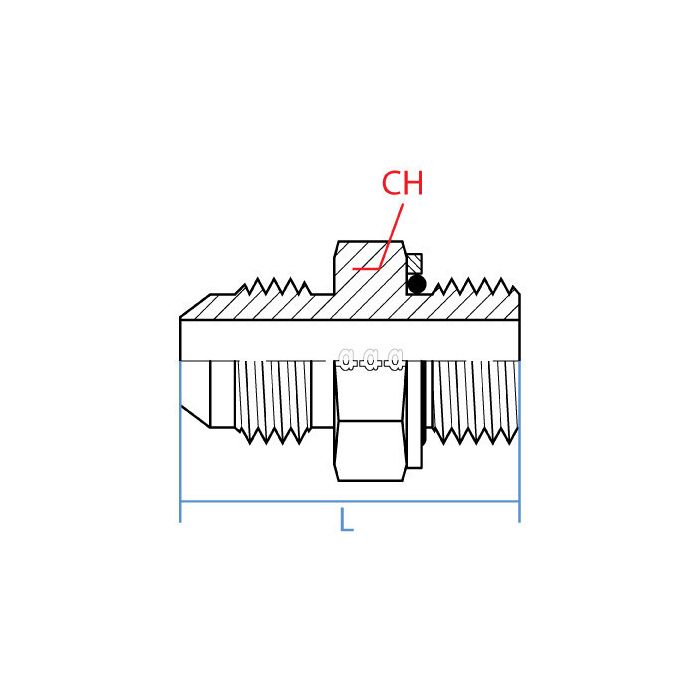

CH Width 24mm	L Length 37.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-06-18	Product Weight 0.01 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment here with an M12 x 1.5 metric port and I need to tie into a JIC line, this the right adapter for that?

Question by: Ronnie W on Aug 16, 2025, 7:45 PM

That's what this one's built for. One end is M12 x 1.5 metric male, and the other is a 9/16-18 UNF JIC male at 3/8 inch. Both ends are male, so you'd be threading this into female-ported fittings or hose ends on each side. The seal is included on the metric end, so you're not chasing down a separate crush washer or O-ring to make up that connection.

Answer by: Customer Support on Aug 18, 2025, 9:21 AM

trying to hook a 9/16-18 JIC line to an M12 x 1.5 port. Is this the right adapter?

Question by: Kirk J on Sep 10, 2025, 1:40 PM

For that mix of threads, it matches what you described. One side is a male JIC 9/16-18 UNF (3/8 inch) and the other side is a male metric M12 x 1.5 (12 mm), and it includes a seal on the metric end.

Answer by: Customer Support on Sep 12, 2025, 6:30 AM

Will this fitting hold up okay in a hydraulic system, or is it more for like, lower pressure stuff?

Question by: Earl C on Oct 20, 2025, 10:47 AM

Designed for industrial settings, this steel fitting can reliably handle the pressures typical of hydraulic systems.

Answer by: Customer Support on Oct 22, 2025, 6:54 AM
