Male Jic X Male Metric W/Seal 9068-06-12

Specifications

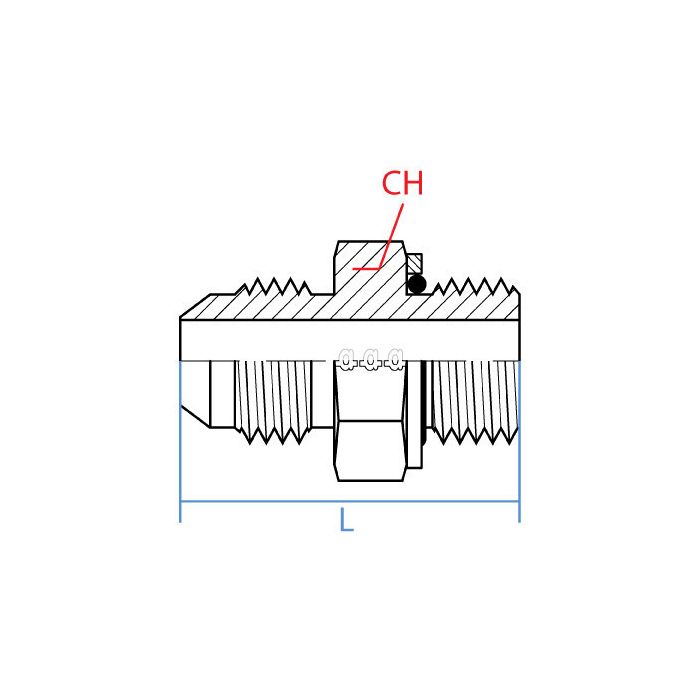

CH Width 17mm	L Length 33.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number 9068-0612, Alternate Part Number MI-02205839, Alternate Part Number MINO-03671X84787	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-06-12	Product Weight 0.06 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a 3/8 JIC line to an M12 x 1.5 port, is that what this adapter’s for?

Question by: Frank C on Aug 25, 2025, 8:13 PM

Built to bridge those two thread styles, it has a 9/16-18 UNF male JIC end (3/8 size) on one side and an M12 x 1.5 male metric end (12 mm size) on the other.

Answer by: Customer Support on Aug 27, 2025, 6:38 AM

Does this adapter go straight across, or is there some kind of angle to it? Trying to figure out if it'll fit in a tight spot without having to reroute my lines.

Question by: Warren H on Feb 26, 2026, 5:51 PM

Straight through, no angle. Both sides run in line with each other, so you're not gaining or losing any clearance from a bend. At 33.2mm long and 17mm wide, it's a pretty compact piece, which helps when space is limited.

Answer by: Customer Support on Feb 28, 2026, 4:53 PM

I just wanna make sure this here adapter will fit my setup. One side's gotta be 9/16 - 18 UNF, and the other's gotta be M12 X 1.5. Is that how it is?

Question by: Carl R on Nov 26, 2025, 10:39 AM

you're spot on. This straight adapter has a 9/16 - 18 UNF thread on one side and an M12 X 1.5 thread on the other, so it should fit just right if those are your requirements.

Answer by: Customer Support on Nov 28, 2025, 6:34 AM
