Male Jic X Male Metric W/ Seal

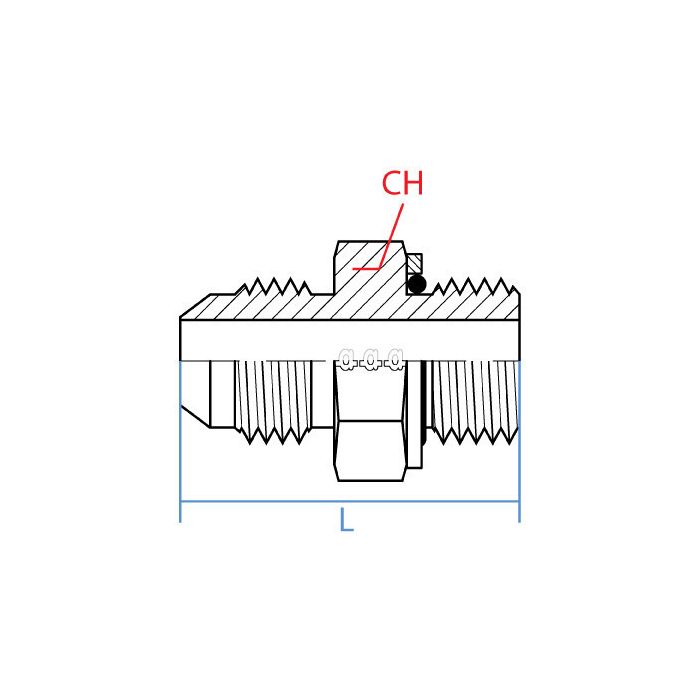

CH Width 16mm	L Length 32.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 20 UNF	Side 1 Gender M	Side 1 Size 5/16"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-05-12	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment running metric fittings on one end and JIC on the other, does this adapter go male to male on both sides, or is one of them female?

Question by: Neil S on Mar 18, 2026, 8:45 AM

Both ends are male on this one. The JIC side is a 1/2-20 UNF thread at 5/16" size, and the metric side is M12 x 1.5 at 12mm. So you'd be threading this into female receivers on both ends of your line. Straight configuration, no bends or offsets.

Answer by: Customer Support on Mar 19, 2026, 11:44 AM
