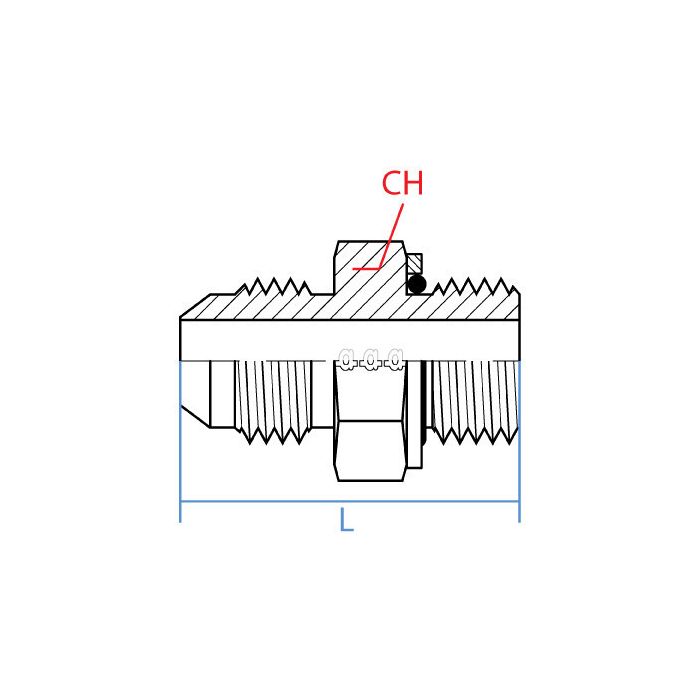

Male Jic X Male Metric W/ Seal

CH Width 19mm	L Length 33.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number FMC102-1958	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-04-14	Product Weight 0.24 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 7/16-20 UNF JIC, will this adapter go over to M14 x 1.5 on the other side?

Question by: Kurt M on Jun 19, 2025, 8:11 AM

For tying two different thread standards together, it’s a straight male to male fitting with a 7/16 - 20 UNF JIC male on one end and an M14 x 1.5 metric male with seal on the other.

Answer by: Customer Support on Jun 20, 2025, 12:15 PM

Will this fitting work to connect a 7/16-20 UNF male end to a M14 X 1.5 port?

Question by: Keith S on Feb 6, 2026, 4:55 PM

Yes, this Adaptall fitting is designed to provide a secure and reliable connection between those two thread types.

Answer by: Customer Support on Feb 8, 2026, 9:31 AM

Does this fitting come with the seal already, or is that something I gotta track down separate?

Question by: Brent C on Aug 1, 2025, 8:43 AM

The seal is included. That's actually called out right in the product name, so you won't need to source one separately or mess with thread sealant to get a leak-free connection.

Answer by: Customer Support on Aug 3, 2025, 6:07 AM

Customers Who Bought This Item Also Bought

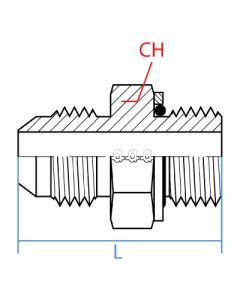

Male Jic X Male Metric W/Seal
