Male Jic X Male Metric W/Seal 9068-04-12

Specifications

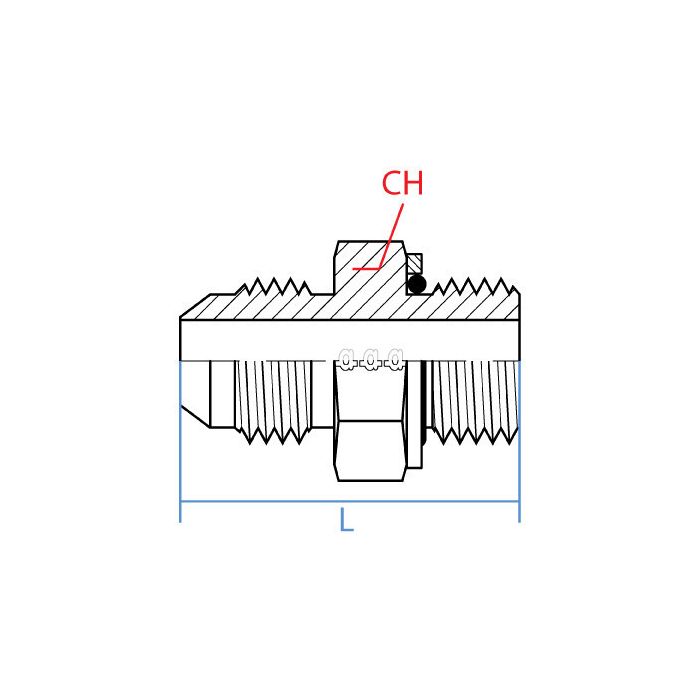

CH Width 17mm	L Length 32.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Alternate Part Numbers Alternate Part Number MI-02205836, Alternate Part Number MINO-03671X84784	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-04-12	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this steel adapter good for high-pressure hydraulic systems, or should I be looking at something else?

Question by: Frank S on Oct 8, 2025, 11:48 AM

This adapter's steel construction is plenty durable for demanding industrial use. It’s designed to provide a secure, leakage-proof connection for hydraulic applications when you need it.

Answer by: Customer Support on Oct 9, 2025, 12:14 PM

got a hose end that’s 7/16-20 UNF JIC, will this adapter get me over to M12 x 1.5 on the other side?

Question by: Earl W on May 29, 2025, 9:22 PM

It bridges exactly those two thread types in a straight adapter. One end is a 7/16 - 20 UNF male JIC (1/4 inch size) and the other end is a male M12 x 1.5 metric (12 mm size), so it is meant for that JIC-to-metric connection.

Answer by: Customer Support on May 31, 2025, 9:31 AM

Got a piece of equipment running M12 x 1.5 metric ports and I need to tie into a JIC line, this the right adapter for that?

Question by: Marvin E on Sep 29, 2025, 7:42 PM

That's what this one's built for. One end is a 7/16-20 UNF JIC male thread, and the other is an M12 x 1.5 metric male thread with a seal included. Both sides are male, so you'd be threading into female ports on each end of your connection. It's a straight adapter, no bends or offsets, so plan your routing accordingly.

Answer by: Customer Support on Oct 1, 2025, 4:48 PM
