Male Jic X Male Metric W/Seal

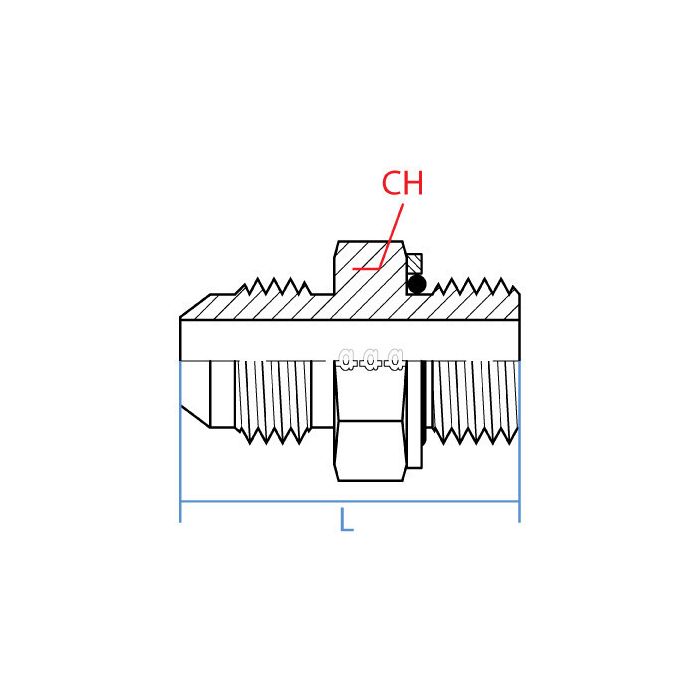

CH Width 16mm	L Length 30.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-04-10	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 1/4 JIC, what’s on the other side of this adapter?

Question by: Norm S on Nov 9, 2025, 1:47 PM

On the metric side you are getting a male M10 x 1.0 connection, listed as 10mm.

Answer by: Customer Support on Nov 11, 2025, 10:59 AM

Will this fitting work for connecting a 1/4" JIC to a M10 x 1.0 port?

Question by: Dwayne S on Jul 13, 2025, 2:17 PM

Yes, this connector is made to adapt a 1/4" JIC male end to an M10 x 1.0 metric male port.

Answer by: Customer Support on Jul 15, 2025, 6:02 AM

Part number 9068-04-10, does one side connect to a 7/16-20 JIC fitting and the other hook up to an M10 x 1.0 metric port?

Question by: Freddie C on Apr 14, 2025, 1:52 PM

That's what you've got. Side 1 is a male 1/4" JIC with a 7/16-20 UNF thread, and Side 2 is a male metric 10mm with an M10 x 1.0 pitch. The seal is already built into the metric side, so you're bridging those two thread standards in one straight steel piece without needing extra hardware to make it leak-free.

Answer by: Customer Support on Apr 15, 2025, 9:02 PM
