Male Jic X Male Metric Thread

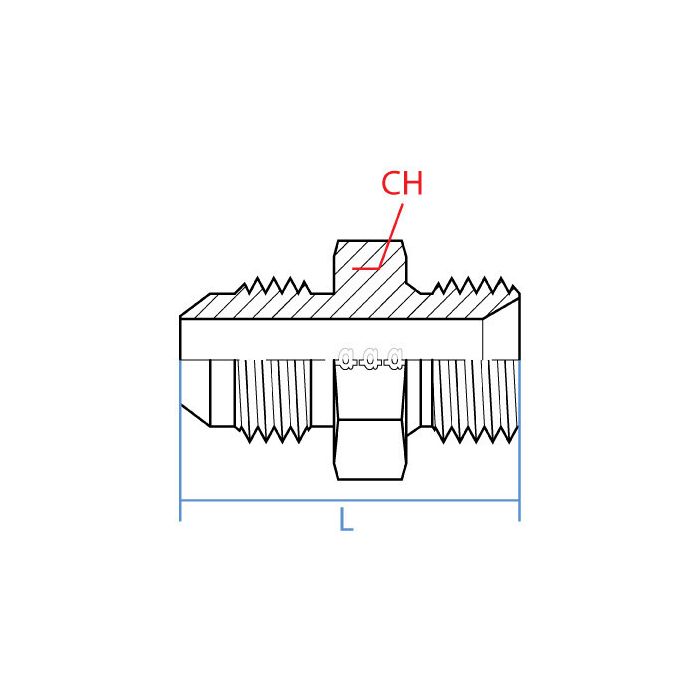

CH Width 25.5mm	L Length 37.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9067-08-20	Product Weight 0.99 lbs

Product Questions & Answers

Will this here fitting hold up okay if I'm running a hydraulic system pretty much non-stop all day?

Question by: Lynn M on Oct 20, 2025, 6:51 PM

Crafted from steel, this adapter should provide reliable performance even in demanding, continuous-use hydraulic systems.

Answer by: Customer Support on Oct 22, 2025, 6:34 AM

got a hose end that’s 3/4-16 JIC male for a 1/2 inch line. will this adapter let me jump over to M20 x 1.5 on the other side?

Question by: Rick S on Jan 5, 2026, 9:12 PM

It bridges a 3/4 - 16 UNF JIC male connection on one end, sized for 1/2 inch hydraulic lines, to a M20 x 1.5 metric male thread on the other end.

Answer by: Customer Support on Jan 7, 2026, 6:24 AM
