Male Jic X Male Metric Thread

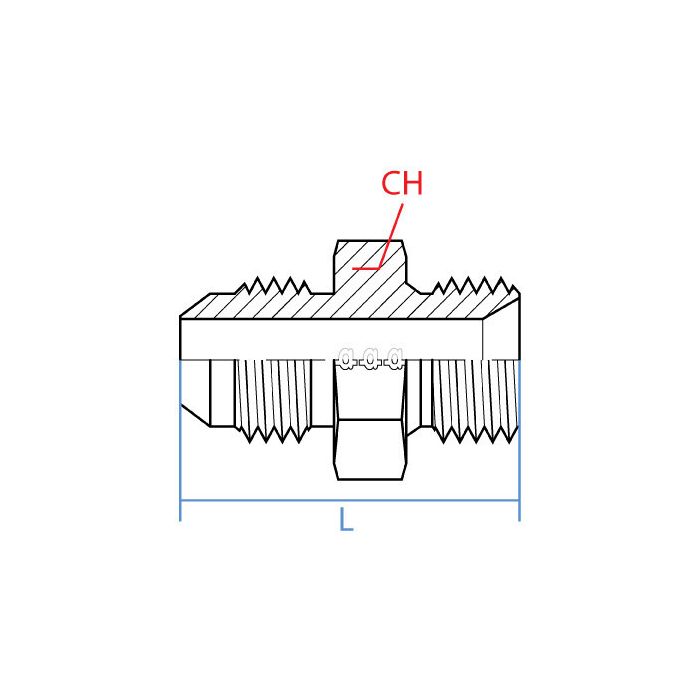

CH Width 22mm	L Length 38.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9067-08-16	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end thats 1/2 JIC, and the other side i need is M16 x 1.5. is this the right straight adapter for that?

Question by: Danny J on Dec 19, 2025, 9:34 AM

For a straight JIC to metric hookup, this adapter matches those ends: one side is a male JIC 1/2 inch with a 3/4 - 16 UNF thread, and the other side is a male metric 16 mm with an M16 x 1.5 thread.

Answer by: Customer Support on Dec 21, 2025, 8:19 AM

what's the thread pitch on the metric end of this fitting?

Question by: Tony W on Mar 29, 2026, 2:39 PM

The metric side runs M16 X 1.5, with a 16mm size. That 1.5mm pitch is a standard coarse metric thread, so it should play nice with most metric ports you'd run across on imported equipment or metric-spec hydraulic components.

Answer by: Customer Support on Mar 31, 2026, 6:44 AM

Just want to make sure, this'll adapt a JIC fitting to a metric one, right?

Question by: Wade T on Sep 30, 2025, 6:18 PM

Yes, this straight steel adapter is designed to connect a male JIC end to a male metric end.

Answer by: Customer Support on Oct 2, 2025, 8:17 AM
