45*Mjic X Male Metric Adj Elb

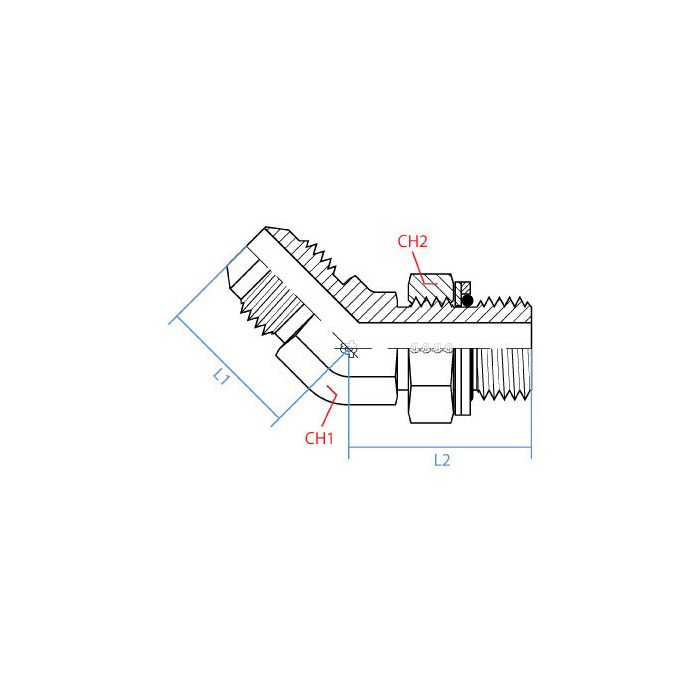

CH1 Width 19mm	CH2 Width 24mm	L1 Length 23mm	L2 Length 32mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9066-08-18	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to hook a 3/4-16 JIC line up to an M18x1.5 port, is this the right elbow for that?

Question by: Chad W on Jan 21, 2026, 4:45 PM

For that mix of threads, yes. Side 1 is a male JIC with 3/4 - 16 UNF threads, and Side 2 is a male metric with M18 x 1.5 threads. It is a 45° elbow adapter meant to bridge JIC to metric in a hydraulic connection.

Answer by: Customer Support on Jan 23, 2026, 6:10 AM
