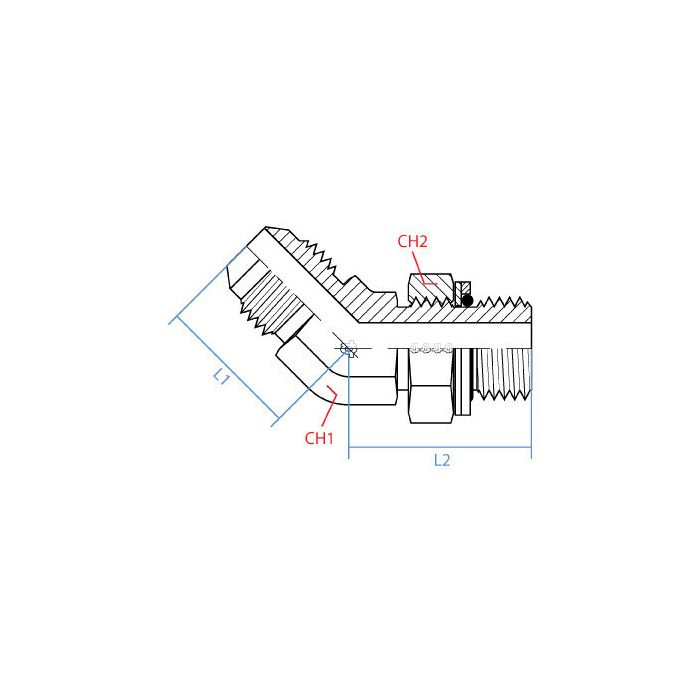

45*Mjic X Male Metric Adj Elb 9066-06-16

Specifications

Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9066-06-16	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tie a 3/8 jic line into a metric port, is this the elbow that does 9/16-18 on one side and M16x1.5 on the other?

Question by: Steve J on Apr 25, 2025, 8:19 PM

For a JIC to metric hookup, it matches those exact threads. One end is 3/8 inch Male JIC with 9/16-18 UNF, and the other end is 16 mm Male Metric with M16 x 1.5.

Answer by: Customer Support on Apr 26, 2025, 8:32 PM

Got a hydraulic line coming off a metric port that needs to angle over to a JIC fitting, this elbow do that job in one piece without stacking a bunch of adapters together?

Question by: Marvin S on Jul 8, 2025, 8:09 AM

Yeah, that's exactly what this fitting handles. One end is 3/8" Male JIC (9/16-18 UNF) and the other is 16mm Male Metric (M16 x 1.5), so you're bridging both thread standards in a single unit. The 45-degree elbow takes care of the angle change right there, and the adjustable design means you can clock it to whatever orientation clears your surrounding components before locking it down. No need to chain adapters to get there.

Answer by: Customer Support on Jul 9, 2025, 2:32 PM

Will this fitting work to connect a 3/8" JIC to a 16mm metric line? Just want to make sure before I order.

Question by: Lance J on Nov 25, 2025, 2:40 PM

That's what this Adaptall fitting is designed to do. It has a 3/8" Male JIC (9/16-18 UNF) on one side and a 16mm Male Metric (M16 x 1.5) on the other.

Answer by: Customer Support on Nov 27, 2025, 6:59 AM
