45* Mjic X Mbspt Elbow

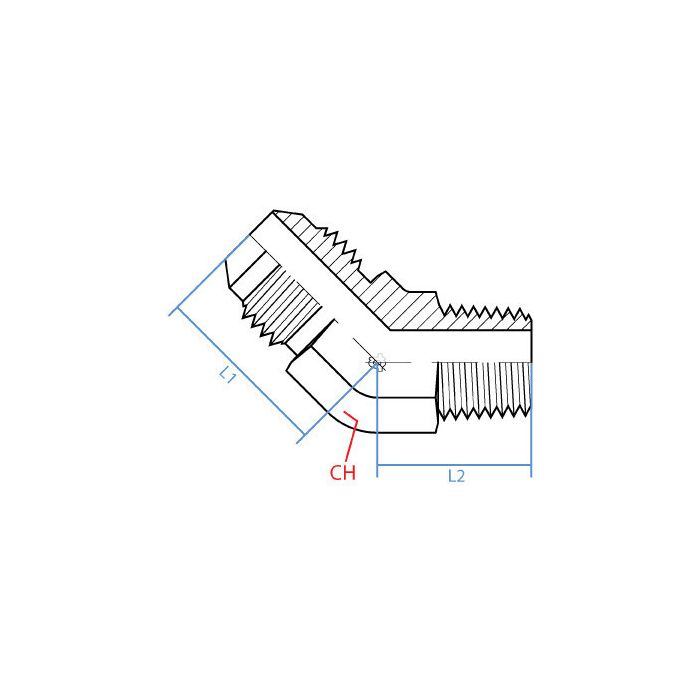

CH Width 22mm	L1 Length 24mm	L2 Length 26.8mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9064-08-08	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Trying to swap a straight fitting for a 45, are the threads on this one 3/4-16 UNF on the JIC side and R 1/2-14 on the BSPT side?

Question by: Jean E on Oct 17, 2025, 1:09 PM

For fit, Side 1 is a male JIC with 3/4 - 16 UNF threads, and Side 2 is a male BSPT with an R 1/2 - 14 thread. Both ends are listed as 1/2 inch size.

Answer by: Customer Support on Oct 18, 2025, 3:23 PM

Will this fitting work with standard hydraulic setups?

Question by: Danny H on Apr 2, 2026, 9:05 AM

This elbow is designed to integrate into industrial hydraulic systems, featuring a male JIC connection and a male BSPT connection for a secure fit in high-pressure applications.

Answer by: Customer Support on Apr 4, 2026, 7:58 AM
