45* Mjic X Mbspt Elbow

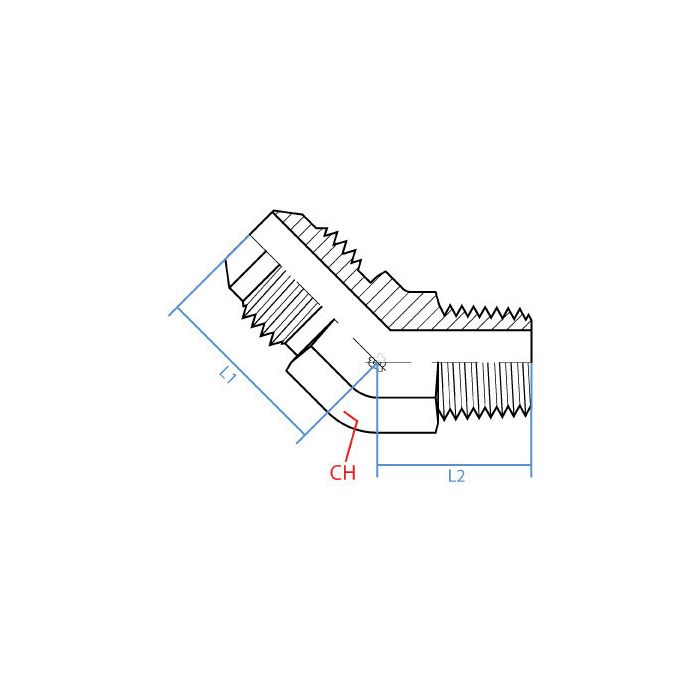

CH Width 14mm	L1 Length 20.5mm	L2 Length 21mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9064-04-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

thread sizes on both ends match up here, 7/16-20 UNF on the JIC side and R 1/4-19 on the BSPT side?

Question by: Vince R on Mar 7, 2026, 12:48 PM

that's correct on both counts. The JIC end runs a 7/16-20 UNF thread and the BSPT end is R 1/4-19. Both sides are 1/4" nominal size, so you're working with a true 1/4" to 1/4" cross-thread adapter in a 45-degree elbow configuration.

Answer by: Customer Support on Mar 9, 2026, 6:03 AM
