45* Mjic X Mbspt Elbow

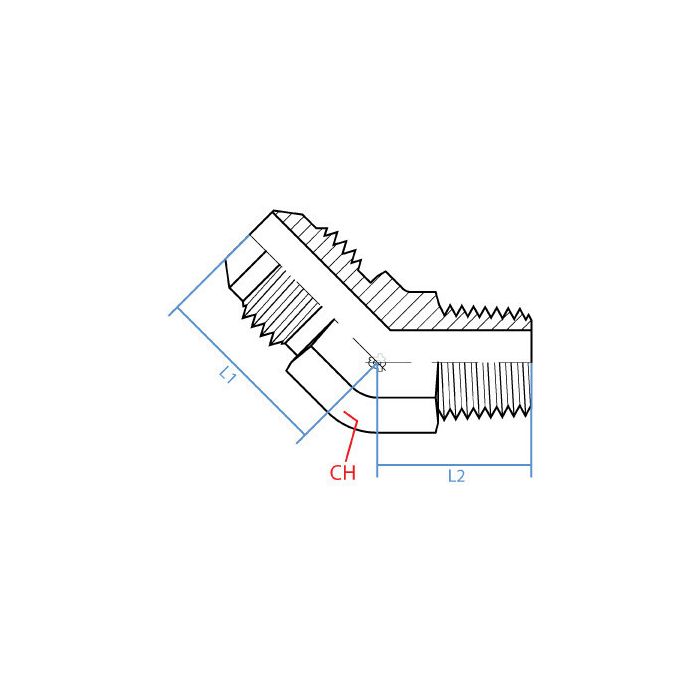

CH Width 12mm	L1 Length 23.5mm	L2 Length 20mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout R 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9064-04-02	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end thats 1/4 jic male, will this elbow match up to it?

Question by: Jerry W on Aug 25, 2025, 9:12 AM

On the JIC side, you are looking at a 7/16-20 UNF male JIC connection, which is the standard thread for 1/4 inch JIC. Since this elbow is male on that end, it mates with a female 1/4 inch JIC swivel.

Answer by: Customer Support on Aug 26, 2025, 1:25 PM
