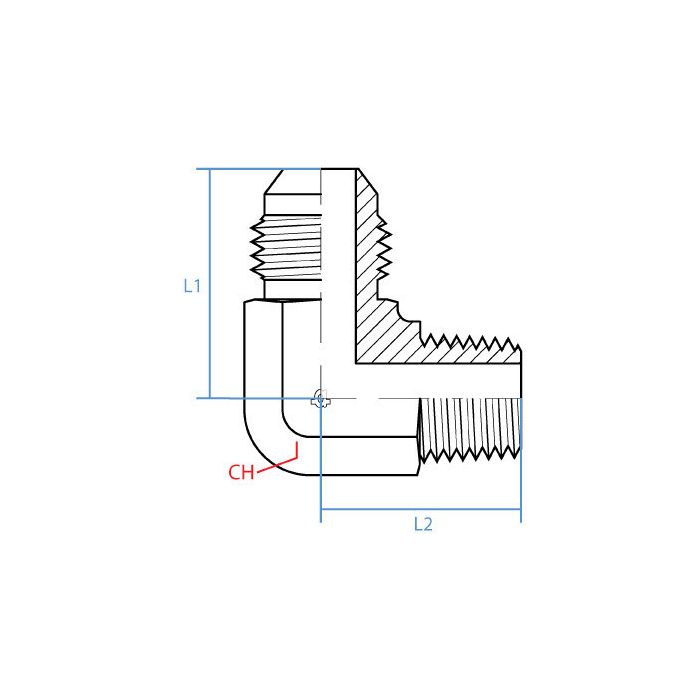

90* Mjic X Mbspt Elbow

Adaptall Material
Steel
Adaptall Shape
90° Elbow
Side 1 Callout
1-5/8 - 12 UN
Side 1 Gender
M
Side 1 Size
1-1/4"
Side 1 Type
Jic
Side 2 Callout
R 1-1/4 - 11
Side 2 Gender
M
Side 2 Size
1-1/4"
Side 2 Type
Bspt
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9063-20-20
Product Weight
1.45 lbs

Product Questions & Answers

trying to hook a 1-1/4 jic hose end to a 1-1/4 bspt port, and i need a 90. is this the right elbow?
Question by: Hubert S on May 10, 2025, 4:18 PM
For that setup, it matches a 1-1/4 inch Male JIC on one end with 1-5/8-12 UN threads, and a 1-1/4 inch Male BSPT on the other end with R 1-1/4-11 threads, in a 90 degree elbow. Since both ends are male, it’s meant to thread into the corresponding female JIC and female BSPT connections.
Answer by: Customer Support on May 12, 2025, 11:31 AM
Both sides on this thing are male, so what exactly am I supposed to be connecting it to on each end?
Question by: Janice R on Dec 17, 2025, 6:25 AM
Each side threads into a corresponding female port. The JIC side needs a 1-1/4" female JIC port with a 1-5/8-12 UN thread, and the BSPT side needs a 1-1/4" female BSPT port with an R 1-1/4-11 thread. Before you go to install it, just make sure both mating ports are female, since there's no built-in flexibility there. It's a common setup when you're bridging JIC hydraulic lines over to equipment that uses BSPT porting.
Answer by: Customer Support on Dec 19, 2025, 6:40 AM
What kind of hydraulic fluid is okay to run through this elbow?
Question by: Warren H on Dec 14, 2025, 6:48 PM
This elbow is made from steel, so it's compatible with a wide range of hydraulic fluids. Just make sure the fluid is appropriate for the rest of your system's components too.
Answer by: Customer Support on Dec 16, 2025, 1:49 PM
